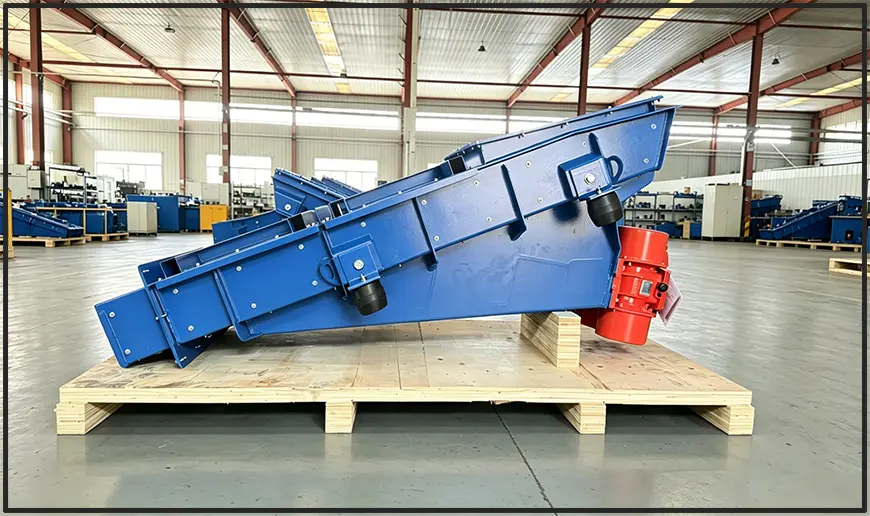

Motor vibrating feeders serve as core equipment to steadily convey raw materials like quartz sand, soda ash and feldspar in glass production. These hard, sharp-edged materials constantly strike and rub against liners, causing rapid wear. Worn liners shorten equipment service life, raise maintenance costs. Worse still, fallen liner debris will mix into raw materials and damage the purity and quality of finished glass products. Therefore, proper selection of wear-resistant liners is vital for glass manufacturers to ensure continuous production, cut costs and improve product quality.

1. Key Operating Challenges for Vibrating Feeder Liners

Glass material delivery poses strict requirements on liners, mainly including three major difficulties:

• Severe abrasion: Quartz sand reaches Mohs hardness grade 7. Continuous friction and impact lead to heavy wear on ordinary liners within several months.
• Strict anti-contamination demand: Liner scraps will cause stones and bubbles on glass. Liners must feature stable material and zero metal pollution.
• Complex working conditions: Fluctuating material humidity, fast feeding speed and partial high temperature near kilns require liners to combine wear resistance, impact resistance, anti-sticking and heat resistance.

2. Comparison of Common Wear-Resistant Liner Materials

2.1 Wear-resistant Steel Plate (NM400/HARDOX450)

    - Specification: Thickness 12-30mm, weldable and bendable, tensile strength ≥1200MPa, temperature resistance ≤350℃.

    - Advantages: Easy installation, outstanding impact resistance, ideal for feeding inlets and chutes with heavy material impact.

    - Disadvantages: Rough surface easily sticks wet materials; metal scraps cause raw material contamination; heavy weight increases - motor load and power consumption.

    - Application: Dry material conveying, low-purity raw material preprocessing and short-term working conditions with limited budget.

2.2 Alumina Ceramic Liner (92%-95% Al₂O₃)

    - Specification: Mohs hardness grade 9, compressive strength ≥2000MPa, wear resistance over 10 times of carbon steel, temperature resistance ≤1000℃, smooth non-stick surface.

    - Advantages: Top-grade wear resistance, no pollution, high heat resistance and anti-sticking performance, suitable for long-term delivery of hard raw materials.

    - Disadvantages: Brittle and vulnerable to cracking under heavy impact; double fixation by glue and welding raises installation cost.

    - Application: Feeder trough, discharge outlet and elbow pipes with high wear and moderate impact.

2.3 UHMWPE Liner

    - Specification: Extremely low friction coefficient, wear loss only 1/7-1/10 of steel plate, shock absorption, temperature resistance ≤80℃.

    - Advantages: Excellent anti-blocking effect, light weight reducing equipment load, pollution-free and easy installation.

    - Disadvantages: Poor heat resistance, easy deformation near high-temperature kilns; weaker wear resistance compared with ceramic liners.

    - Application: Normal temperature workshops, wet material conveying and hoppers prone to blockage.

2.4 Ceramic-Rubber Composite Liner

    - Specification: Alumina ceramic pieces embedded in wear-resistant rubber base, temperature resistance ≤80℃.

    - Advantages: Combined wear resistance and shock absorption, noise reduction, stable fixation and anti-falling performance.

    - Disadvantages: Rubber aging under high temperature; higher price than single material liners.

    - Application: Vibrating feeding sections and mixed heavy impact & wear conditions, widely adopted in glass industry.

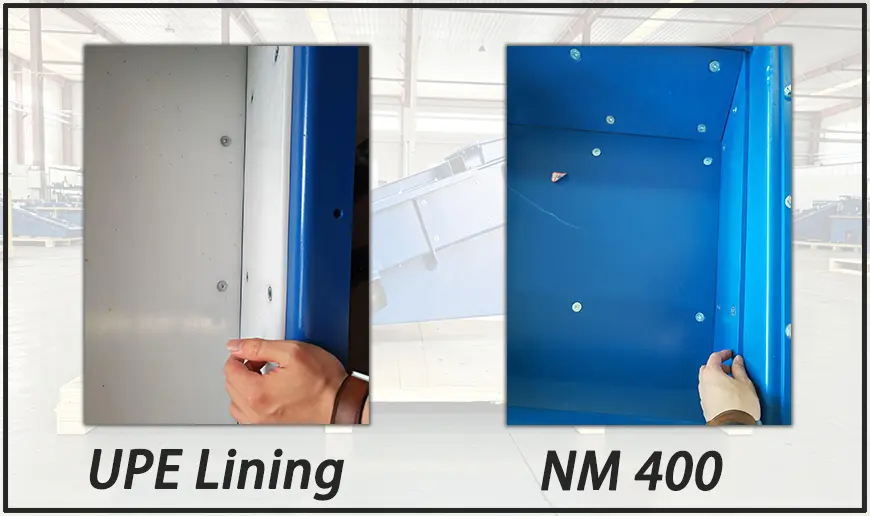

Comparison of two common wear-resistant liners for vibrating feeders: UHMWPE (UPE) lining for anti-sticking and low contamination, and NM400 steel lining for high impact resistance, both suitable for glass production applications

3. Core Principles of Liner Selection

3.1 Selection based on raw material property

• Hard dry materials such as quartz sand and feldspar: Choose alumina ceramic or ceramic-rubber composite liners.
• Moist and sticky materials: Adopt UHMWPE or rubber liners to avoid blockage.
• Large-size materials with strong impact: Select wear-resistant steel or composite liners to prevent brittle fracture.

3.2 Selection based on working temperature

• Normal temperature below 80℃: UHMWPE, rubber and composite liners are all applicable.
• Medium temperature 80-350℃: Wear-resistant steel and alumina ceramic liners are preferred.
• High temperature above 350℃: Only alumina ceramic and corundum castable can be used.

3.3 Selection based on cost performance

• Short-term service within 1-2 years: Wear-resistant steel plate offers cost-effective installation.
• Long-term service for 3-5 years: Composite liners lower overall cost with long service life and less maintenance.
• High-end glass production with strict purity standard: Alumina ceramic liners eliminate metal contamination.

4. Installation and Maintenance Tips

• Surface treatment: Remove oil and rust on inner walls to ensure tight fitting.
• Fixed installation: Ceramic liners fixed with high-temperature glue and welding; composite liners fastened by special bolts.
• Regular inspection: Check wear and looseness weekly and replace damaged parts timely.
• Standard operation: Keep metal foreign matters away and control material humidity and feeding speed.

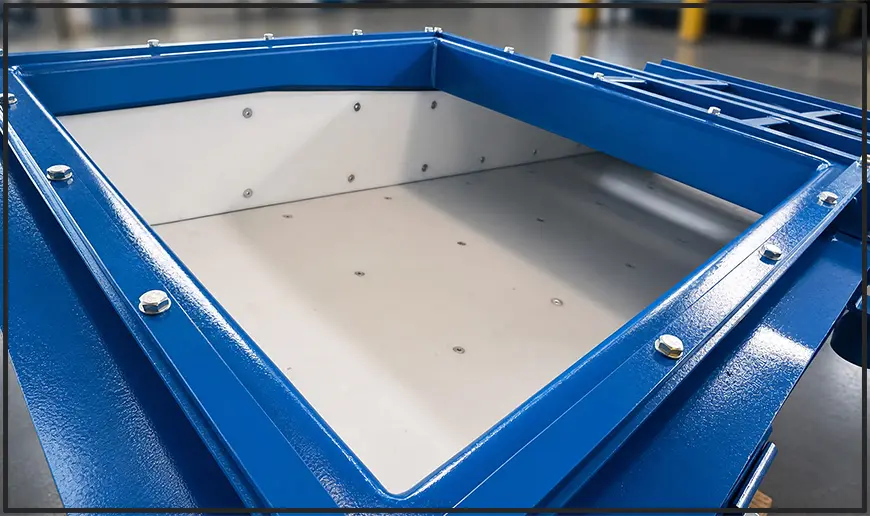

Close-up view of the internal lining of a vibrating feeder, showing the smooth UHMWPE (UPE) liner installed to reduce wear, prevent material sticking, and avoid contamination during glass raw material feeding

Liner selection needs balanced consideration of wear resistance, impact resistance, anti-pollution, heat resistance and cost. Ceramic-rubber composite liner becomes the mainstream choice with comprehensive performance. Alumina ceramic liner fits high-purity and heavy-wear scenarios. UHMWPE liner solves wet material blockage, while steel plate works well for short-term heavy impact working conditions.
