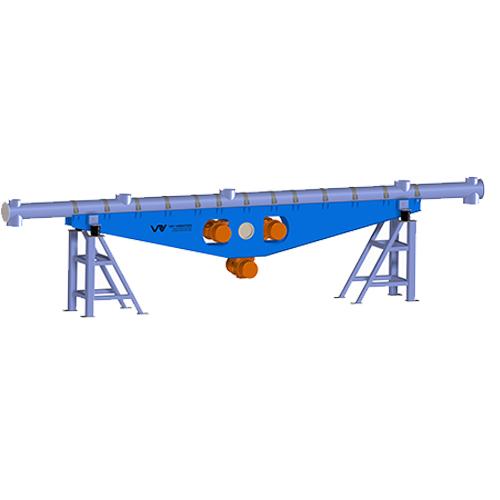

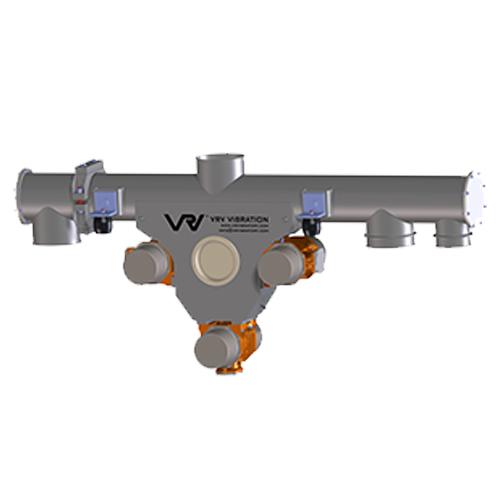

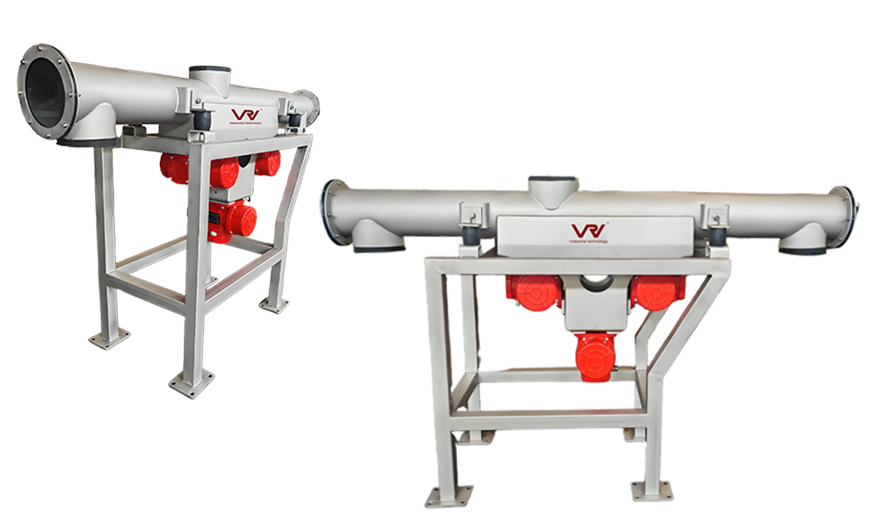

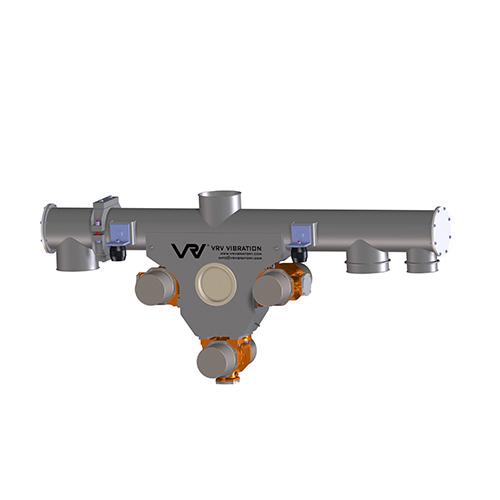

The Reversible Vibrating Feeder, also known as a Two-way Vibrating Feeder/Conveyor, is a vibratory feeding equipment capable of switching conveying directions. It is suitable for work sites requiring the feeder to have discharge outlets at two opposite positions, conveying materials to the left or right as needed. The Two-way Vibrating Feeder can be designed with a single feed inlet or dual feed inlets to meet the two-way conveying needs of mixed bulk materials. It features high tightness, simple structure, maintenance-free operation and stable conveying performance.
Two-way Vibrating Conveyor Working Principle

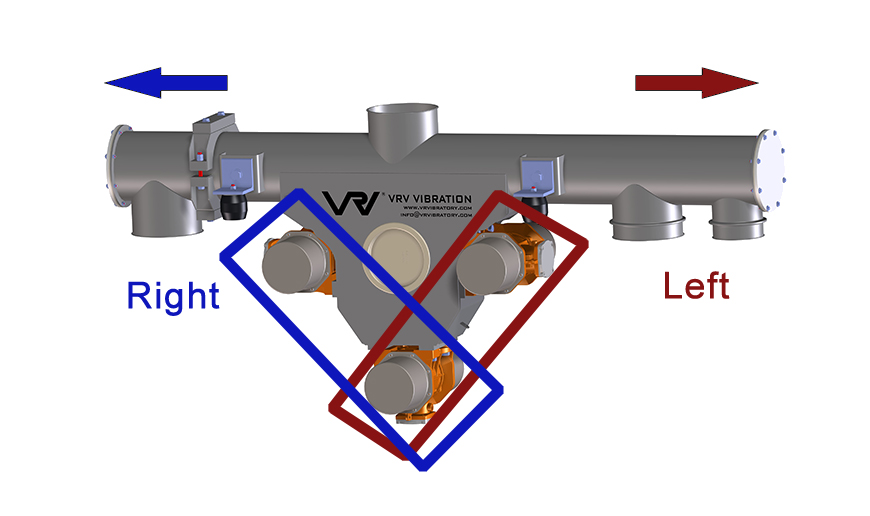

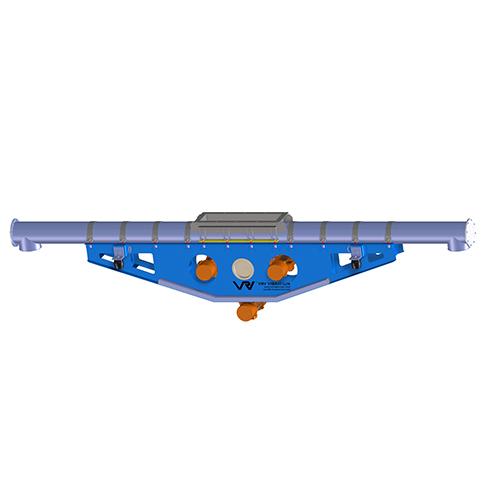

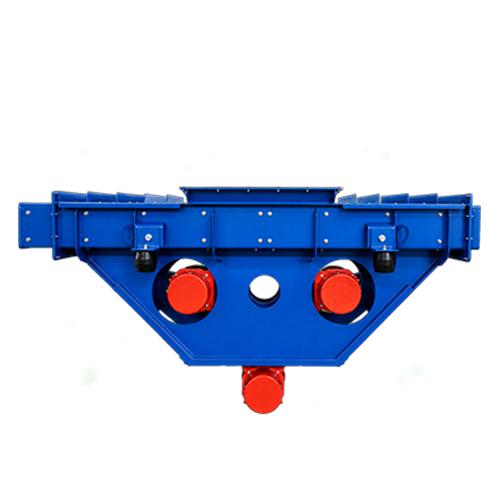

The two-way vibrating conveyor adopts three vibration motors or electromagnetic vibrators as vibration sources. One driver is installed in the middle of the equipment, and the other two are mounted on the left and right sides respectively. When the work site requires discharging from the right, the middle and right drivers need to be activated. When discharging from the left is needed, the left driver should be turned on. This enables switching the material conveying direction of the reversible vibrating feeder. Granular and powdery materials continuously jump or slide forward under the action of gravity and the inertial force of the two vibration motors, achieving uniform and continuous feeding.
Two-way Vibrating Conveyor Advantages
1, Save the installation space of the equipment;
2, Suitable for multiple silos to discharge materials in the same direction simultaneously;
3, Strong sealing performance: Isolated from the external environment through sealing elements;
4, Flexible structural design, customized design;
5, Two-way vibrating conveyors with an electromagnetic vibrator can be directly used for weighing and feeding.
Two-way Vibrating Conveyor Parameter
|
Conveying distance (single direction) |
≤5000mm |
|
Capacity |
≤500tph |
|
Drive |
Vibrating motor or electromagnetic vibrator |
|
Equipment material |
Mild steel or stainless steel |
|
Voltage and frequency |
Customized |

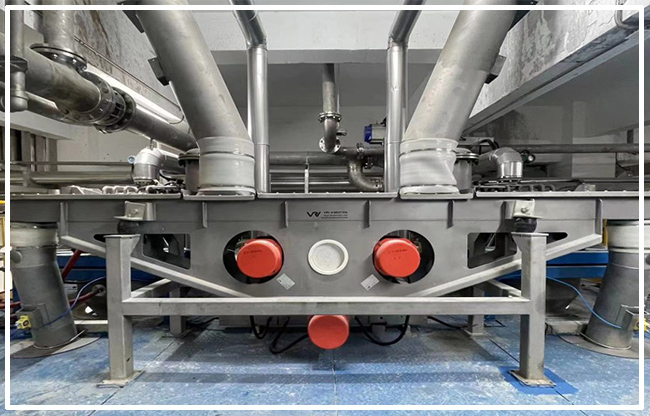

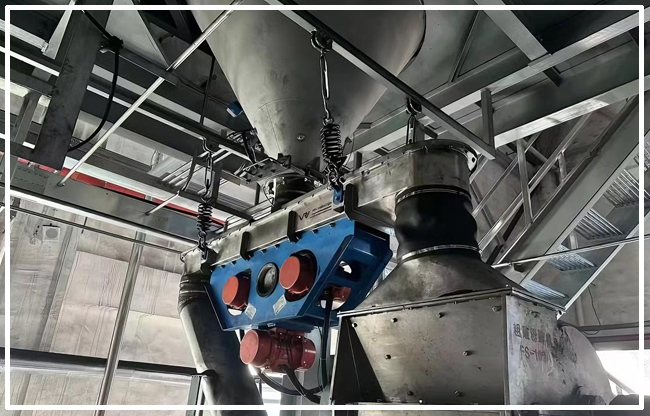

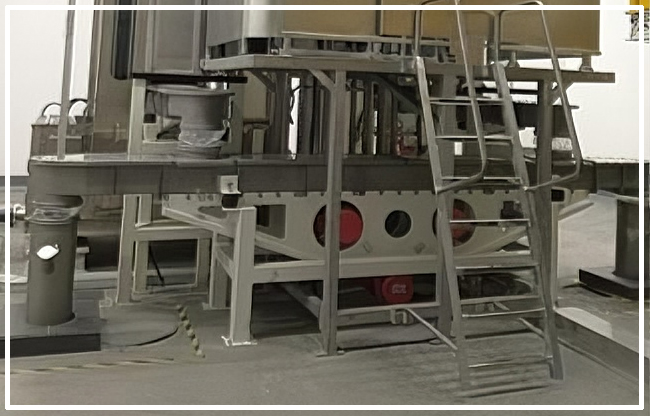

Two-way Vibrating Conveyor Application
FAQ
Q1.
How to choose the right equipment ？
A:
VRV suggest you provide us the information of bulk material need to be handled,
including the material parameters so that our technical staff will provide the
most appropriate advice
Q2.
Can I buy just one equipment?
A:
Yes, there is no quantity limitation. We offer not only individual equipment,
but also customize production lines for enterprises.
Q3.
What’s your delivery time?
A:
It depends on equipment. Normally it will take 1 to 3 months.
Q4.
What’s your price terms and payment terms?
A:
We accept EUR and USD.
Q5.
How to guarantee the quality?
A:
VRV marks every equipment with unique serial number, by which design parameters
can be easily traced and after-service can be ensured in years. VRV takes
responsible for every equipment perpetually.
Any issues occurred during the life cycle of VRV vibratory equipment will be analyzed by our engineers thus to find out the optimal solution. Our company is also willing to assist customer’s field experts and maintenance engineers and provide our test data and advices to help them solve problems.
