VRV Electromagnetic Vibrator Controller
----Tailor made for matching all the electromagnetic vibrators on the market
As the "intelligent brain" of the Electromagenetic Vibrating Feeder, the electromagnetic vibrator controller achieves dynamic control of the material conveying volume by precisely adjusting the magnitude and frequency of the electromagnetic force. Its core working principle is based on the law of electromagnetic induction. By changing the output voltage, the amplitude of the drive is adjusted in real-time to meet the material conveying requirements under different working conditions. This controller integrates an intelligent PID closed-loop regulation system, which can quickly respond to load changes to ensure the stability and uniformity of material conveying.

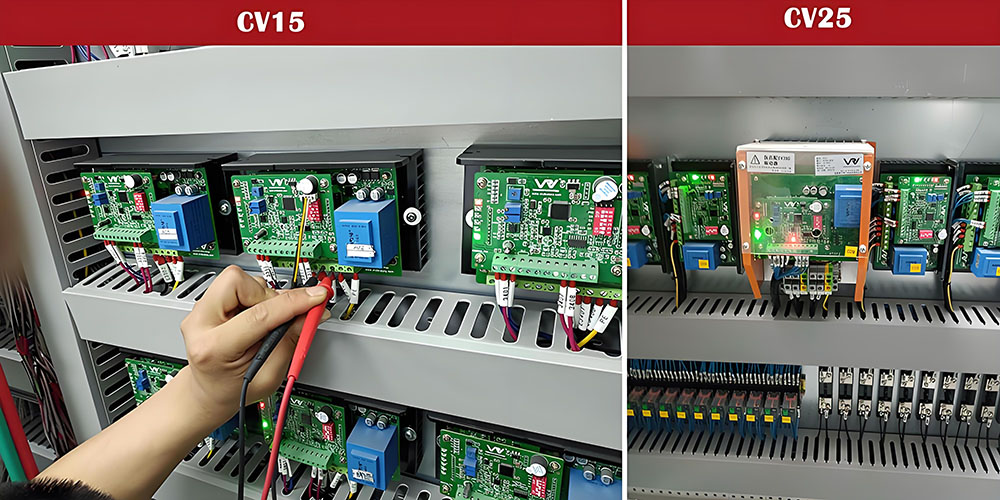

At the same time, VRV controllers support analog or Modbus protocol digital signal input, seamlessly docking with industrial control systems such as PLC and DCS to achieve remote operation and automated management. It has multiple protection mechanisms against overcurrent, overheating, and undervoltage. Combined with a wide voltage adaptability design, it effectively improves the reliability of the equipment in complex industrial environments. The VRV electromagnetic drive controller is available in two models, CV15 and CV25, which can be adapted to all models of electromagnetic drives of the VRV brand and other brands, providing an efficient and stable power solution for material conveying in industries such as mining, chemical engineering, and food.

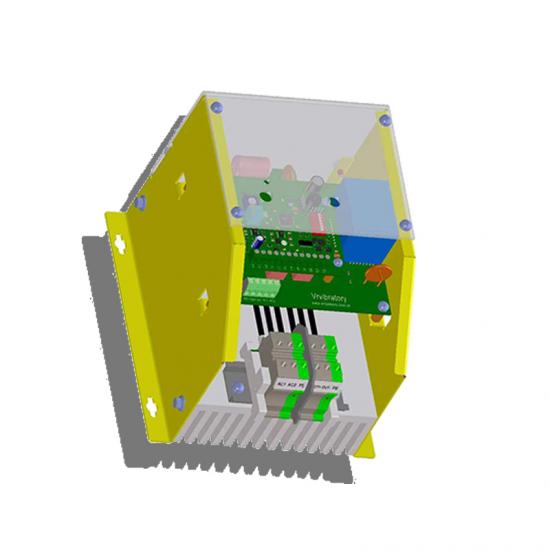

Electromagnetic vibrator controller structural properties
1. Output voltage adjustment
2. Range adjustment of the set value for the output voltage
3. Smooth activation, two settings
4. Maximum and minimum output voltage adjustment via separate potentiometers
5. Different versions for specialized requirements
6. Level detection systems and part spillage controllers
7. Feeder drives and sensors: plug-in type
VRV ELECTROMAGNETIC VIBRATOR CONTROLLERS PDF
Electromagnetic vibrator controller advantages
1. Modular design with strong versatility, by setting the output frequency and maximum output voltage to match the electromagnetic vibrators of various manufacturers
2. Can achieve stepless speed regulation, 0-100%
3. The applicable range of a single model power supply is from 0.05A to 6.0A or 2.0A to 42.0A
4. Suitable for power supply with voltage 105~115, 220~240V, 380~400V and frequency 50HZ or 60HZ
5. Output frequency: 100Hz, 50Hz, 33Hz, 25Hz optional for 50Hz power grid, 120Hz, 60Hz, 40Hz, 30Hz optional for 60Hz power grid
6. Also suitable for hazardous environmental conditions: operating temperature between -5~45°C
7. Built-in output relay is used for monitoring or interlocking of centralized automation systems
8. Selectable tripping via sensor (normally closed, passive contact or voltage signal +24VD)
9. External control input 0~10V, DC, 0~20mA, 4~20mA
10. Level scanning system and component overflow controller with adjustable switching time relay
11. Different sensors (photoelectric sensors, inductive proximity sensors, terminal switches can be connected for level scanning systems and component overflow controllers, etc.)
12. Startup time adjustable
FAQ
Q1. How to choose the right equipment ？
A: VRV suggest you provide us the information of bulk material need to be handled, including the material parameters so that our technical staff will provide the most appropriate advice
Q2. Can I buy just one equipment?
A: Yes, there is no quantity limitation. We offer not only individual equipment, but also customize production lines for enterprises.
Q3. What’s your delivery time?
A: It depends on equipment. Normally it will take 1 to 3 months.
Q4. What’s your price terms and payment terms?
A: We accept EUR and USD,
Q5. How to guarantee the quality?
A: VRV marks every equipment with unique serial number, by which design parameters can be easily traced and after-service can be ensured in years. VRV takes responsible for every equipment perpetually.
Any issues occurred during the life cycle of VRV vibratory equipment will be analyzed by our engineers thus to find out the optimal solution. Our company is also willing to assist customer’s field experts and maintenance engineers and provide our test data and advices to help them solve problems.
