Silo Vibrating Discharge Feeder

Silo Vibrating Discharge Feeder General Introduction

VRV Vibrating Bin Discharge Feeder is a crucial asset in industrial material - handling operations. Engineered for optimal performance, it excels at facilitating smooth material discharge from bins into the subsequent production processes. With a high - capacity design, it can handle large volumes of various materials, ensuring an efficient and continuous workflow.

Built with durability in mind, the feeder is constructed from robust, high - quality materials that can withstand the rigors of heavy - duty use. This not only extends its service life but also significantly reduces the need for frequent maintenance. As a result, businesses can enjoy minimized downtime and lower operational costs, making it an ideal choice for industries such as mining, construction, and bulk - material processing where consistent, high - volume material transfer is essential. It's widely used across industries such as mining for ore discharge, food processing for ingredient transfer, the chemical industry for accurate compounding, and construction for discharging aggregates and cement.

Silo Vibrating Discharge Feeder Working Principle

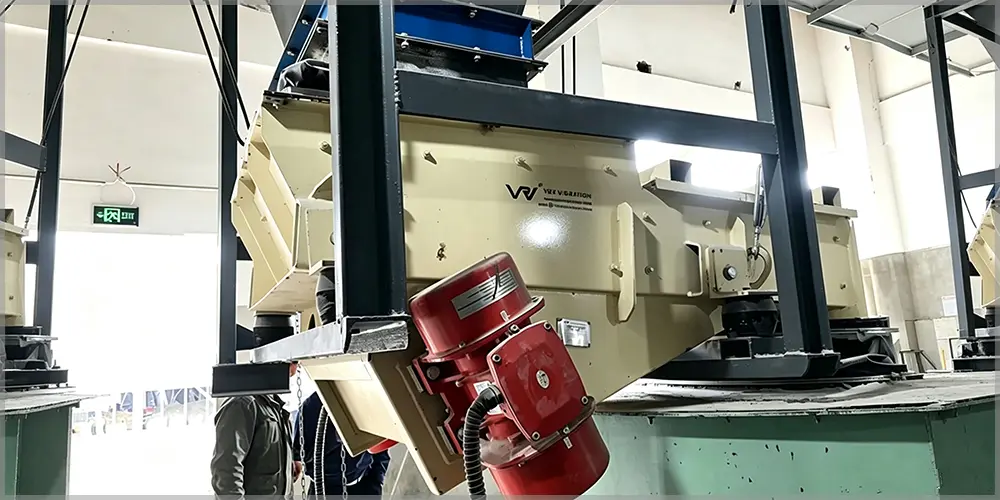

Mounted under silos or Bins, the vibrating bin discharge feeder relies on directional vibration motors & electromagnetic vibrator and elastic spring & leg supports to drive the feeding trough. Materials move forward via continuous micro-jumping inertia to achieve steady, adjustable quantitative feeding. Minor vibration loosens compacted bin-bottom materials to avoid blockages, with all vibration isolated from the silo via shock-absorbing components, focused on stable, controllable material delivery for downstream processes.

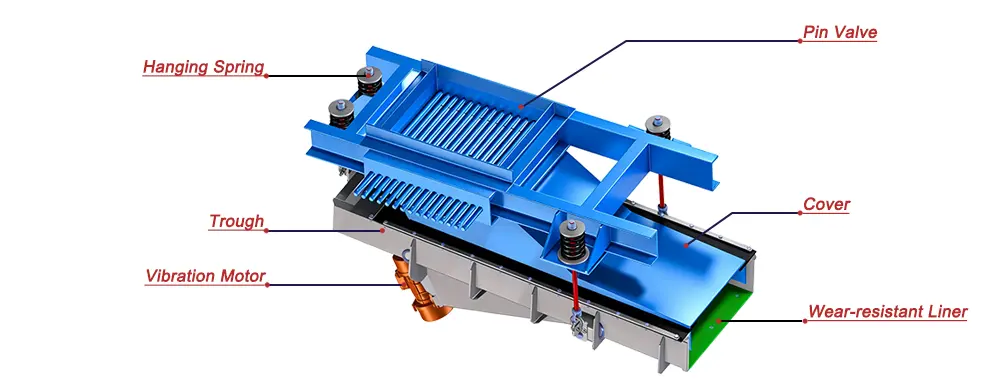

Silo Vibrating Discharge Feeder Main Components

1, Valve: The valve installed under the silo controls the discharge speed and on-off of bulk materials from the bin; common types include slide gate valve, rotary airlock valve, butterfly valve, knife gate valve and double gate discharge valve.

2, Trough: The main carrier for conveying bulk materials on the silo discharger, and its material options such as carbon steel, stainless steel and wear-resistant alloy are critical to its service life and anti-abrasion performance.

3, Drive: The drive unit supplies vibration power for the vibrating feeders, with two common options: vibrating motor featuring stable high-power output for heavy-duty operation and electromagnetic vibrator delivering fast adjustable soft vibrations for light, precise feeding.

5, Cover: The cover fits over the trough to contain conveyed materials from spilling out and guide the material flow smoothly during operation.

6, Wear-resistent Liner: Available in wear-resistant steel, polyurethane and rubber materials, is attached inside the trough to resist material abrasion and extend the service life of equipment.

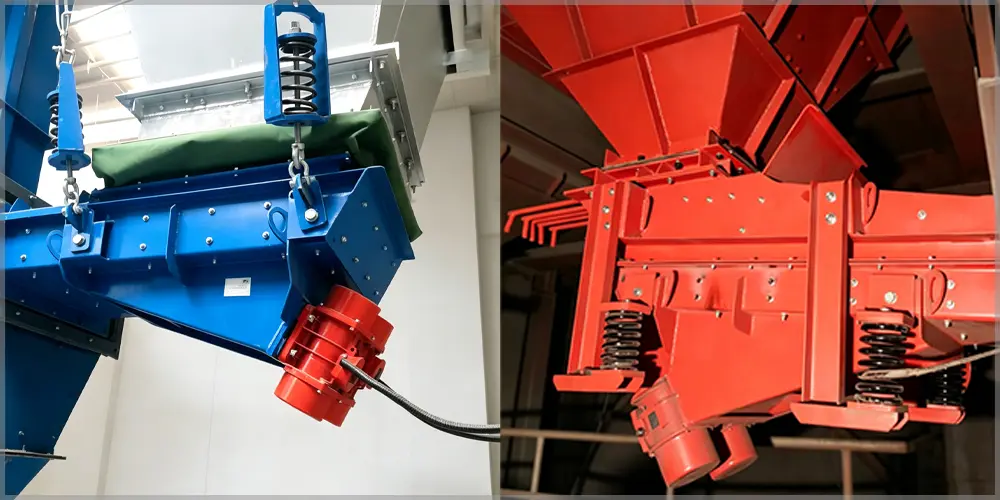

7, Hanging Spring: The hanging spring suspends the conveying trough, isolates vibration transfer to the support frame and reduces equipment operating noise and impact.

Silo Vibrating Discharge Feeder Advantages

1,  Closed cover can be added to increase conveying capacity and reduce the size of the drive

2,  Large conveying capacity configuration, up to 10,000 T/H

3,  Low noise level

4,  Feed rate adjustable

5,  Low energy consumption, high efficiency, long operation lifetime

Silo Vibrating Discharge Feeder Key Specification

FAQ

Q1. How to choose the right equipment ？

A: VRV suggest you provide us the information of bulk material need to be handled, including the material parameters so that our technical staff will provide the most appropriate advice

Q2. Can we use an electromagnetic vibrator to power the vibrating bin discharge feeder?

A: Yes, the electromagnetic vibrating feeder offers more flexible control.

Q3. Can we control the capacity of motor type?

A: Yes, you need an invertor

Q3. What’s your delivery time?

A: It depends on equipment. Normally it will take 1 to 3 months.

Q4. What’s your price terms and payment terms?

A: We accept EUR and USD,

Q5. How to guarantee the quality?

A: VRV marks every equipment with unique serial number, by which design parameters can be easily traced and after-service can be ensured in years. VRV takes responsible for every equipment perpetually.

Any issues occurred during the life cycle of VRV vibratory equipment will be analyzed by our engineers thus to find out the optimal solution. Our company is also willing to assist customer’s field experts and maintenance engineers and provide our test data and advices to help them solve problems.

Certification and Qulification of Vibrating Feeder Manufacturer

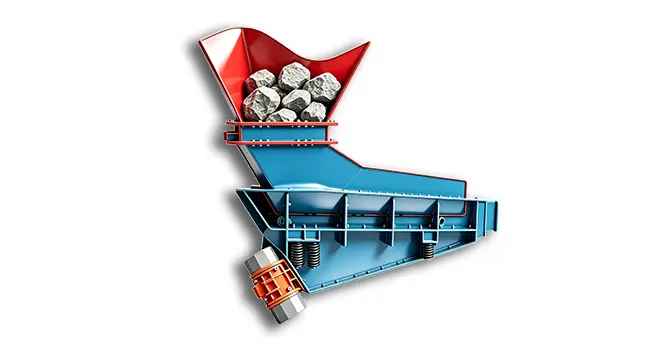

Silo Vibrating Discharge Feeder Applications
