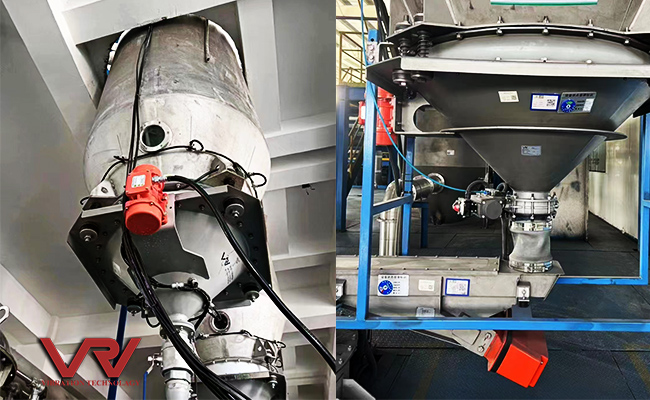

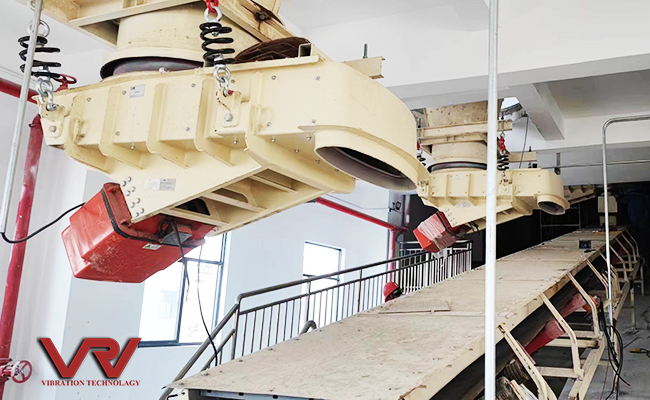

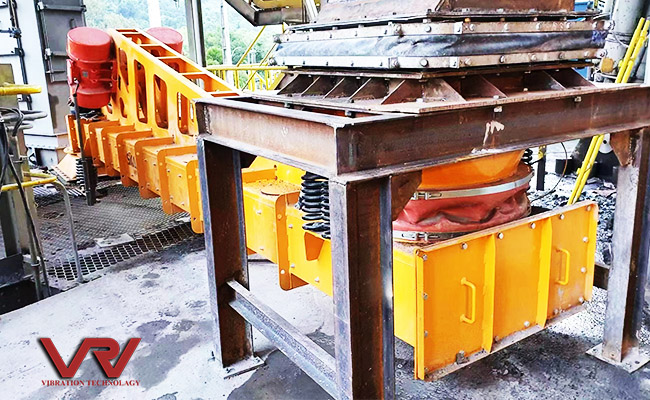

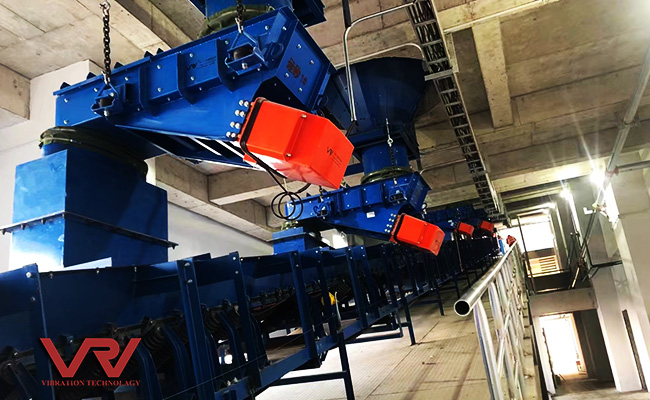

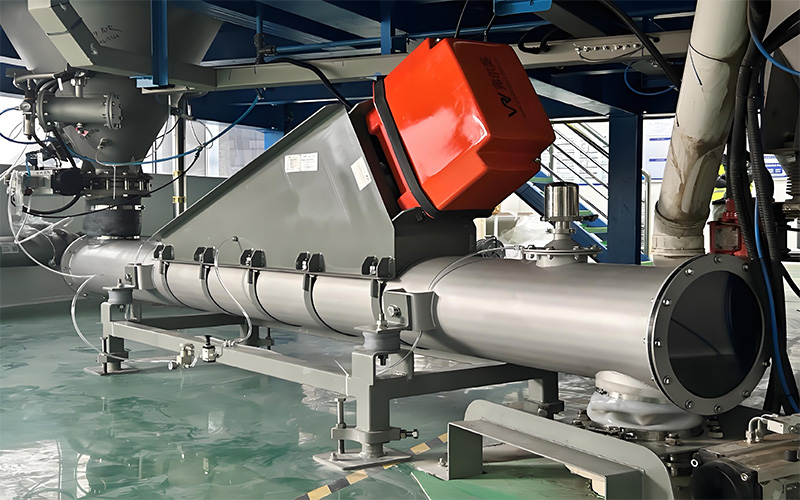

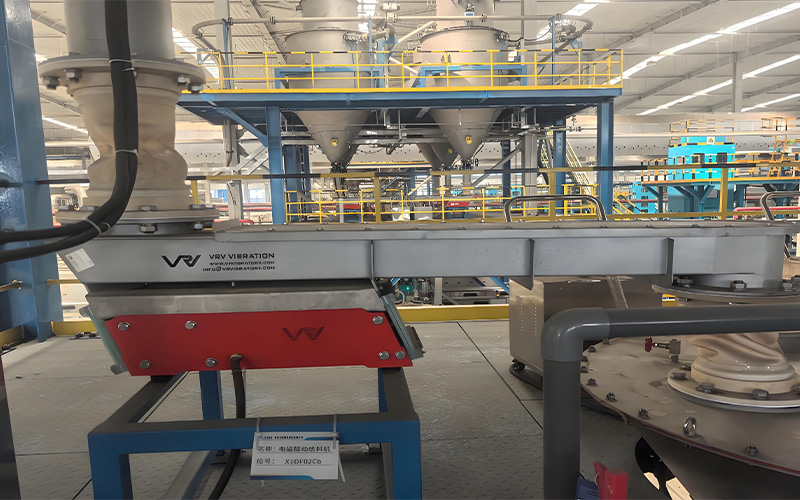

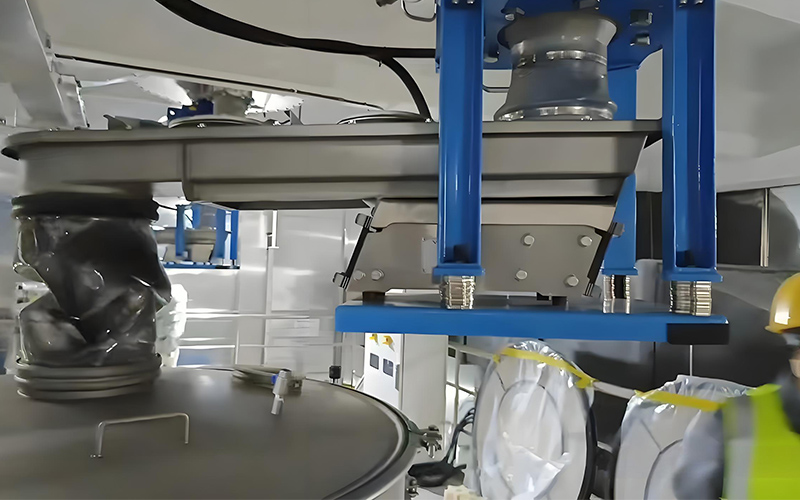

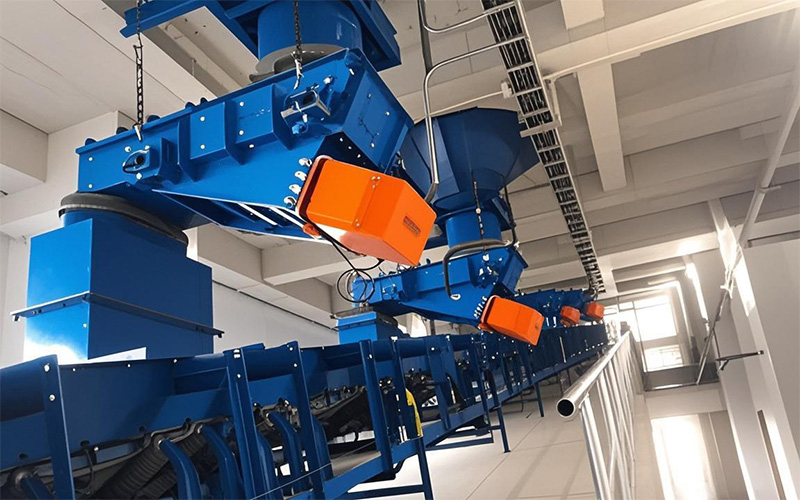

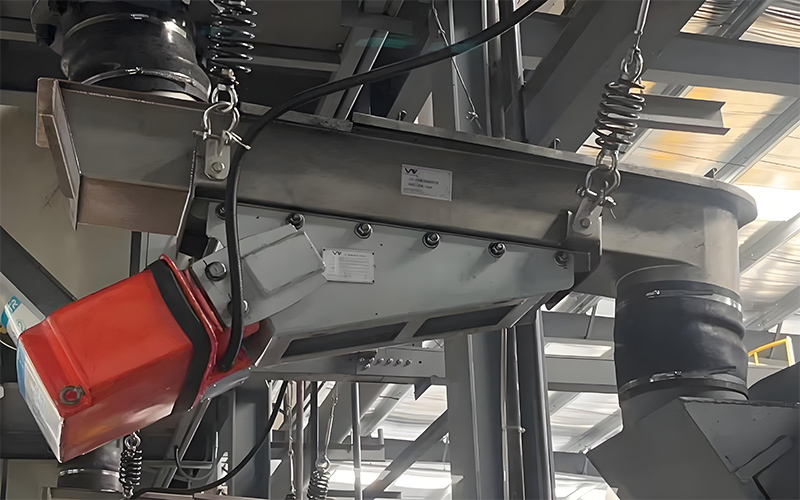

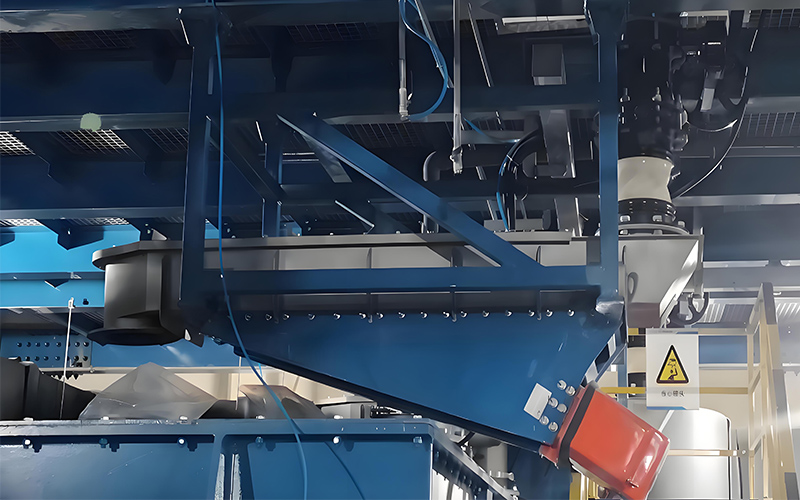

—— Electromagnetic Vibrating Feeder On-Site Application & Project Cases ——
An electromagnetic vibrating feeder (also referred to as an electromagnetic vibratory feeder) is a specialized industrial conveying machine that utilizes electromagnetic force to transport bulk materials. Its core function is to evenly and quantitatively convey powders, lumps and granular materials from hoppers to downstream processing equipment. Featuring a simple structure, compact volume and low energy consumption, it is driven by an electromagnetic vibrator with no need for mechanical transmission components. Key advantages include high feeding accuracy and convenient operation adjustment: the feeding capacity can be precisely regulated by controlling the input current to adjust the vibration frequency. Additionally, this feeder delivers smooth operation, low noise emission and low maintenance costs, making it a reliable choice for bulk material conveying applications across the food processing, mining, metallurgy and chemical engineering industries.
Electromagnetic Vibrating Feeder Working Principle
An electromagnetic vibrating feeder is composed of four core components: an electromagnetic vibrator, a vibrating trough/tube, a support frame, and a controller. Each component performs a dedicated function, and their coordinated operation enables the stable and quantitative conveying of bulk materials.

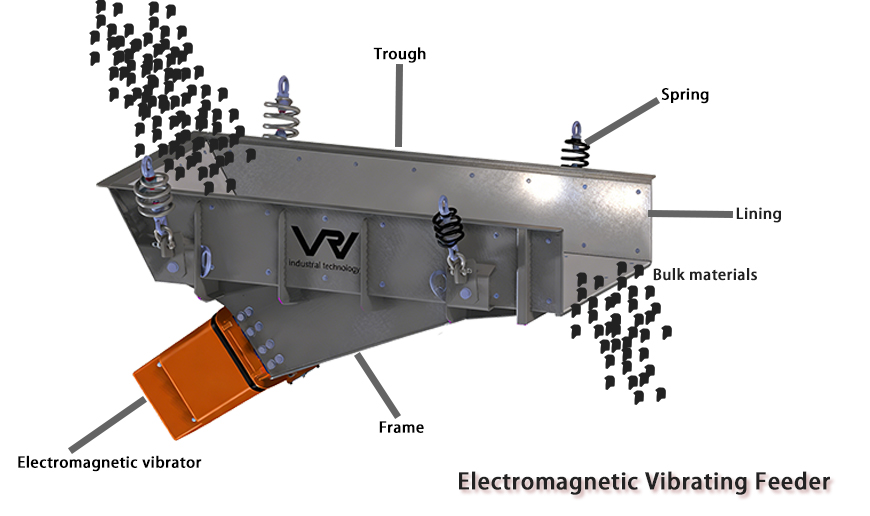

—— Electromagnetic Vibrating Feeder Structure Diagram – Core Components and Material Flow ——

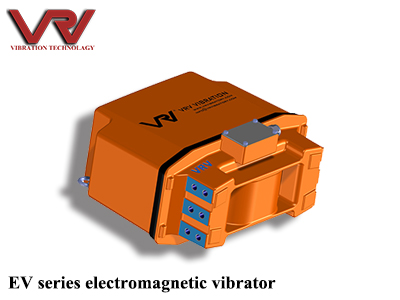

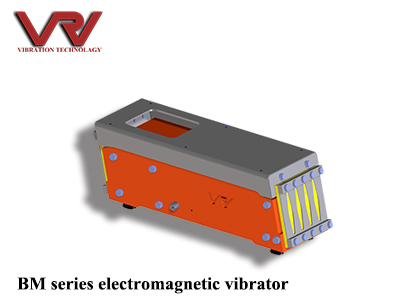

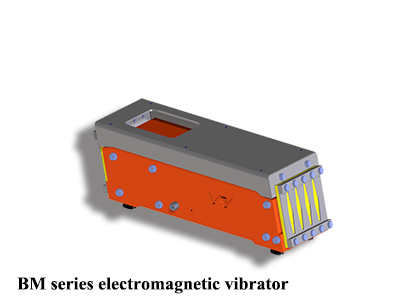

1. The electromagnetic vibrator serves as the power core of the feeder, consisting of an electromagnetic coil and an iron core. Powered by an AC power supply, it generates controllable electromagnetic force that directly drives the vibrating trough/tube to produce regular vibration—the fundamental power source for material conveying.

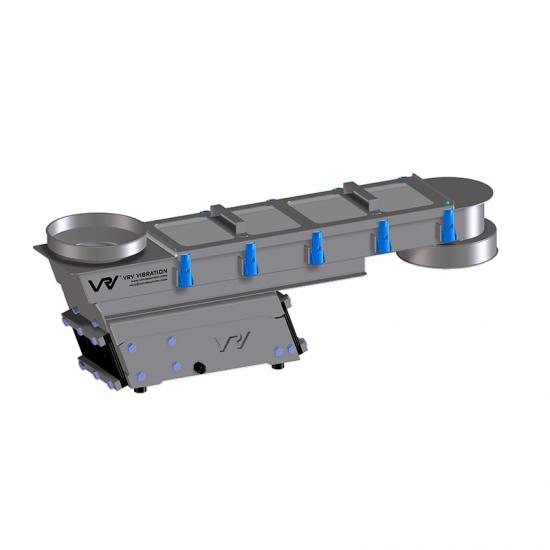

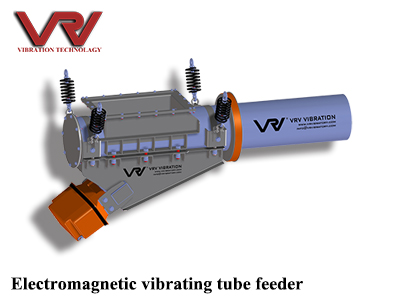

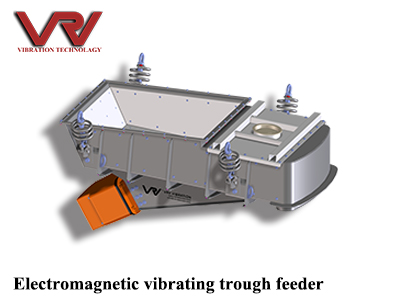

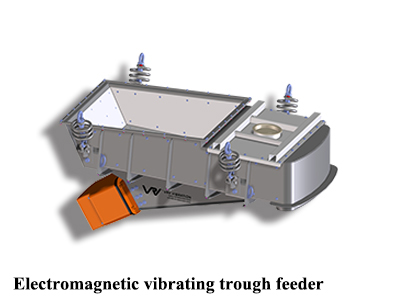

2. The vibrating trough/tube is the material-carrying structure, with its shape, size and material customized to match the properties of the conveyed material and on-site feeding requirements. It is available in rectangular trough or tube types, with open and closed structural designs; the main materials include carbon steel and food-grade stainless steel, making it adaptable to the material conveying needs of glass, food, hardware and other industries.
3. The support frame is used to support and fix the vibrating trough/tube, ensuring its stable operation during vibration. It also features vibration-dampening performance, which can effectively minimize vibration transmission from the feeder to the surrounding environment. For special on-site requirements, a suspended mounting configuration is also an optional installation method.

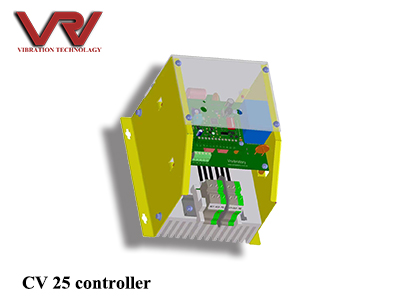

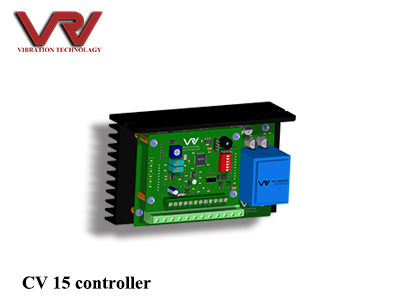

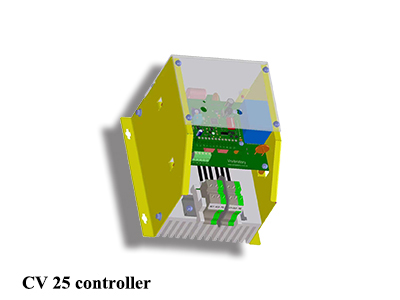

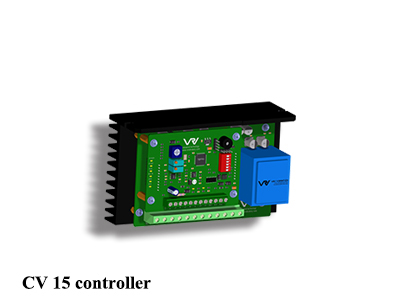

4,The controller is the control core for the feeder’s operating state. By adjusting key parameters (e.g., input current, vibration frequency, and vibration amplitude) on the controller, the feeding capacity and conveying speed of the feeder can be precisely regulated, fully meeting the variable material conveying requirements of different production processes.
Electromagnetic Vibrating Feeder Advantages
1. Precise Feeding Control
The electromagnetic vibrating feeder enables precise regulation of material conveying volume by adjusting the vibration frequency and amplitude of the electromagnetic vibrator. This allows users to make fine-tuned adjustments according to specific production needs, ensuring accurate material dosing that meets the requirements of diverse industrial processes.
2. Energy Efficiency
Powered by a high-efficiency electromagnetic vibrator, this feeder boasts superior energy transfer efficiency and lower power consumption compared to traditional mechanical transmission feeders. Additionally, the electromagnetic vibrator’s small inertial mass enables faster start-stop response, minimizing energy waste during intermittent production operations.
3. Stable and Reliable Operation
Featuring a simplified structure with no mechanical transmission components, the electromagnetic vibratory feeder significantly reduces the risk of mechanical failures and unplanned downtime. The electromagnetic vibrator can also adjust vibration frequency and amplitude in real time based on material flow conditions, ensuring continuous, stable conveying and effectively preventing material blockages and accumulation.
4. Flexible Production Adaptability
Designed for agile production scheduling, the feeder allows quick adjustment of feeding capacity by controlling the input current of the electromagnetic vibrator. This flexibility enables it to seamlessly adapt to fluctuations in material supply and production demands across different batches and workflow stages.
5. Low Maintenance & Quiet Operation
Unlike traditional mechanical feeders, this electromagnetic model requires no lubricants and has no easily worn transmission parts, resulting in extremely simple maintenance. The elimination of mechanical friction also reduces operational noise and vibration, creating a quieter, more comfortable working environment for on-site personnel.
Electromagnetic Vibrating Feeder Selection Guide
To maximize the performance and longevity of your electromagnetic vibrating feeder, it is critical to select the right model based on your specific material properties, production requirements, and industry standards. Below is a structured guide to help you make an informed choice, along with key industry applications where our feeders deliver exceptional value.
1. Materials Characteristics
Electromagnetic Vibrating Feeder Applications with Diverse Bulk Materials
When selecting an electromagnetic vibrating feeder, the material name, bulk density, and particle size are essential parameters that form the foundation of your choice. Additionally, critical factors such as the material’s angle of repose, ambient operating temperature, and flowability provide further insights to ensure optimal performance and compatibility. For fine, cohesive powders with poor flowability, we recommend a tube-type feeder with a sealed design and adjustable vibration parameters to prevent bridging and ensure consistent discharge. For granular or lumpy materials with a high angle of repose, a trough-type feeder with a steeper incline and higher vibration amplitude is ideal to facilitate smooth material flow. In high-temperature or corrosive environments, selecting a feeder constructed from heat-resistant or stainless steel materials will guarantee durability and reliability.
2. Capacity & Production Requirement
Match the power and vibration amplitude of the electromagnetic vibrator to your hourly material handling capacity. For scenarios that demand high-precision dosing and batching, such as food formulation and chemical mixing, we recommend models with variable speed control to deliver a stable feeding accuracy of ±1%.
3. Material of Construction

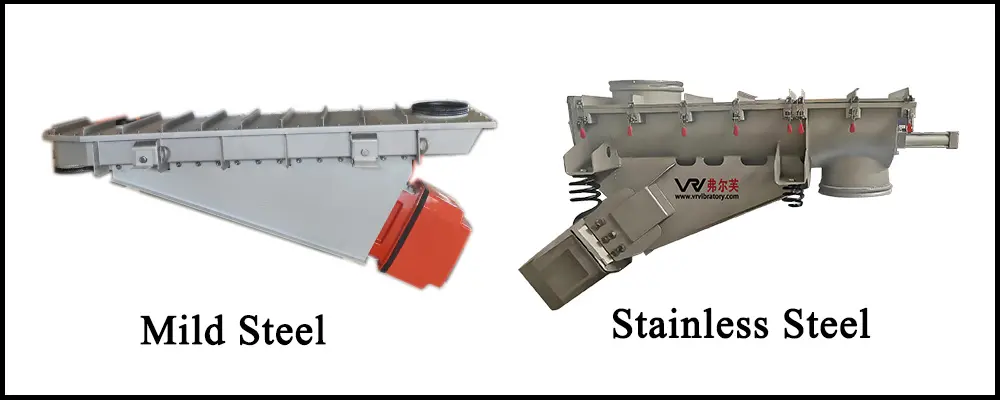

Electromagnetic Vibrating Feeder: Mild Steel vs Stainless Steel Construction
The contact material of the electromagnetic vibrating feeder is a critical factor that determines its hygiene level, corrosion resistance and service life. For general industrial applications with non-corrosive materials and no special hygiene requirements (such as mining, metallurgy and building materials), carbon steel is the most cost-effective option with reliable strength and wear resistance. For food processing, daily chemical and light industrial scenarios with basic cleaning and anti-rust demands, 304 stainless steel is recommended for its smooth surface, easy cleaning and moderate corrosion resistance. For high-hygiene, corrosive or food-contact working conditions (including food ingredients, pharmaceutical raw materials and chemical additives), 316L stainless steel is the optimal choice, which meets strict international hygiene standards and provides superior corrosion resistance and long-term stable performance.
4. Conveying Distance

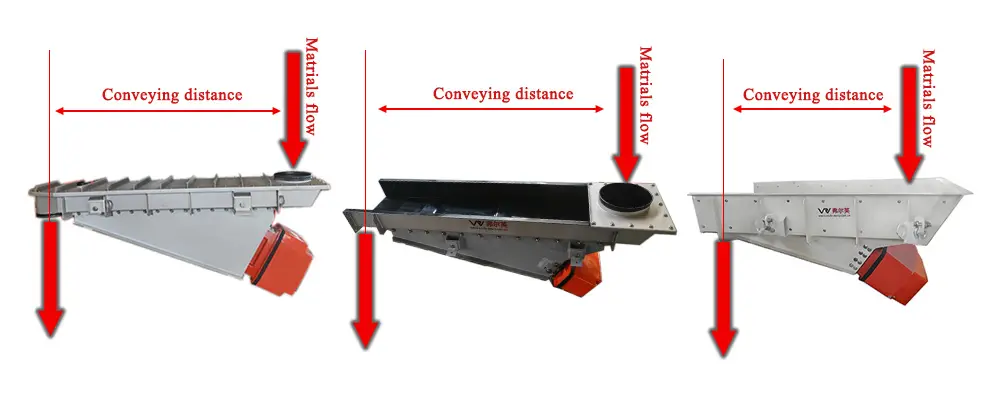

Electromagnetic Vibrating Feeder: Conveying Distance and Material Flow Diagram
Conveying distance, defined as the center distance between the feeding inlet and discharging outlet, is a critical factor in selecting the right electromagnetic vibrating feeder. For short-distance conveying applications, standard models can ensure stable and smooth material flow. For medium and long-distance transfer requirements, we recommend feeders with optimized vibration parameters and a structurally reinforced trough or tube to maintain consistent feeding performance across the entire conveying path.
5. Inlet & Outlet Dimensions
Electromagnetic Vibrating Feeder: Inlet & Outlet Dimensions Diagram (Trough Width & Outlet Diameter)
Inlet and outlet dimensions are key matching parameters for the electromagnetic vibrating feeder. They must be determined according to the connection size of your upstream and downstream equipment (such as silos, hoppers and processing machines) to ensure smooth material butt joint, avoid material spillage or blockage. Properly sized inlet and outlet openings also help maintain stable feeding efficiency and adapt to your actual throughput and particle size requirements.
6. Internal & External Surface Finishes

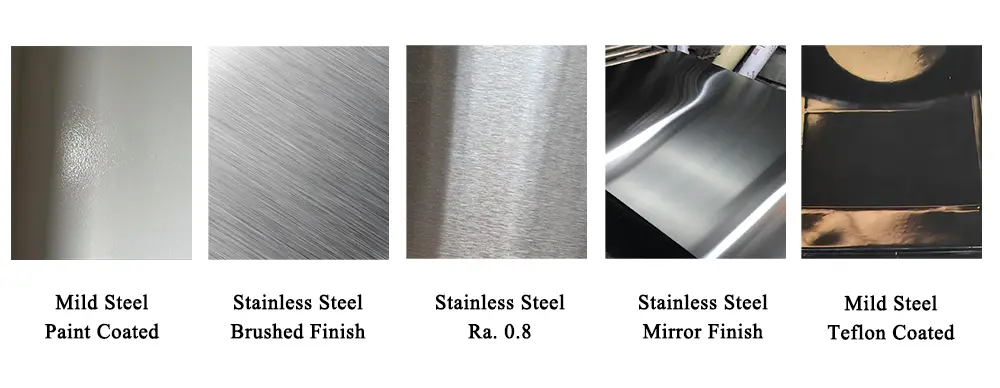

Electromagnetic Vibrating Feeder: Common Internal & External Surface Finishes
Surface treatment for the inner and outer surfaces of the feeder directly affects cleanability, corrosion resistance and service life. For general industrial applications, standard surface finishes such as sandblasting or protective coating provide reliable wear and rust resistance. For food, pharmaceutical and other hygiene-sensitive scenarios, mechanical polishing or mirror polishing is recommended, as it creates a smooth, non-sticky surface that is easy to clean and prevents material buildup or bacterial contamination. For corrosive environments, specialized anti-corrosion surface treatments can be applied to further enhance durability under harsh operating conditions.
7. Installation Constraints
8. Industry Standards
Electromagnetic Vibrating Feeder Specification
PARAMETER
STANDARD CONFIGURATION
CAPACITY
Max. 1000tph
CONVEYING MODE
Continuity
FEEDING ACCURACY
0.1%
CONYING DISTANCE
Max. 12000mm
WIDTH
Max. 3500mm
VIBRATION FREQUENCY
33Hz, 50Hz, 60Hz (Custom)
MAIN MATERIAL
Mild steel, Stainless steel (Custom)
PROTACTION GRADE
IP55

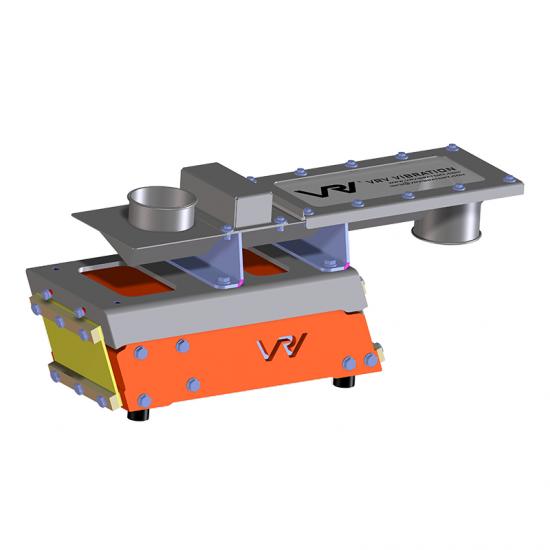

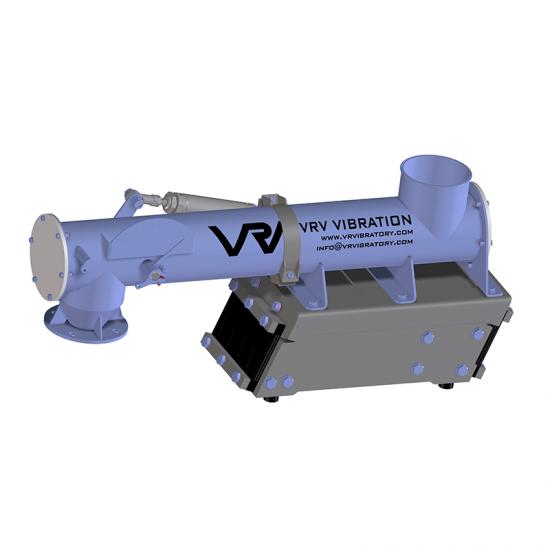

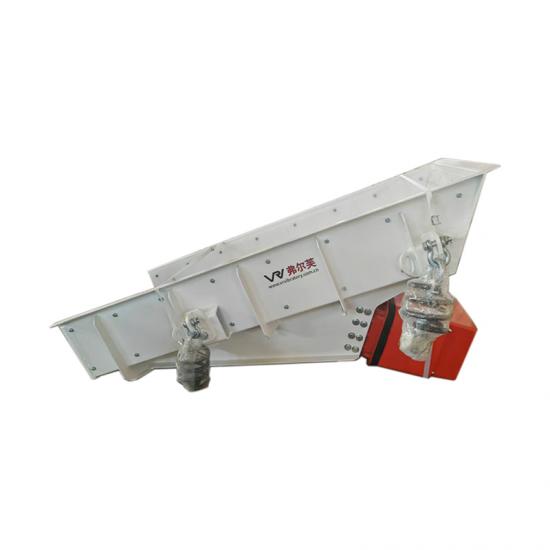

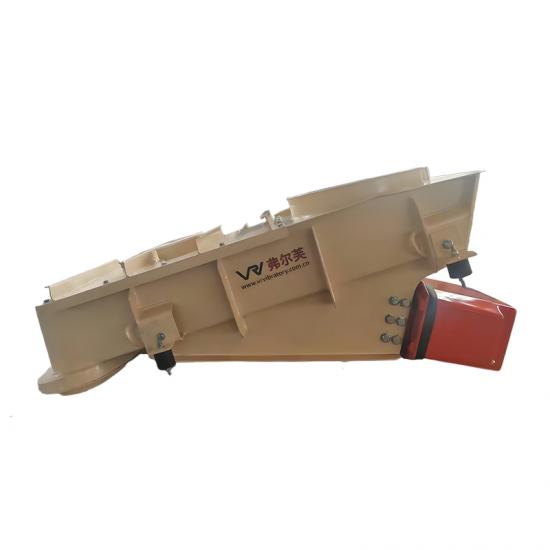

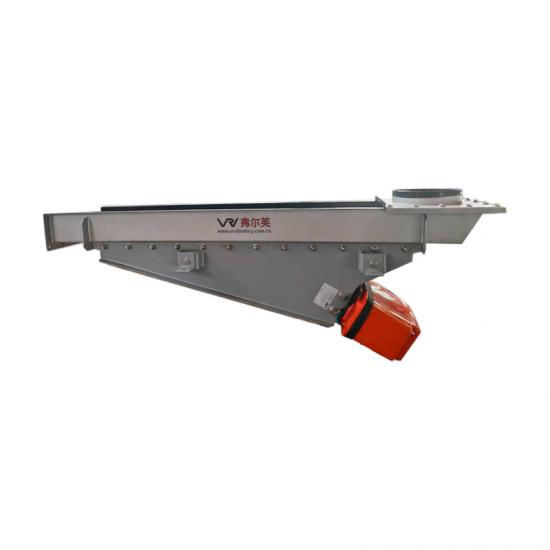

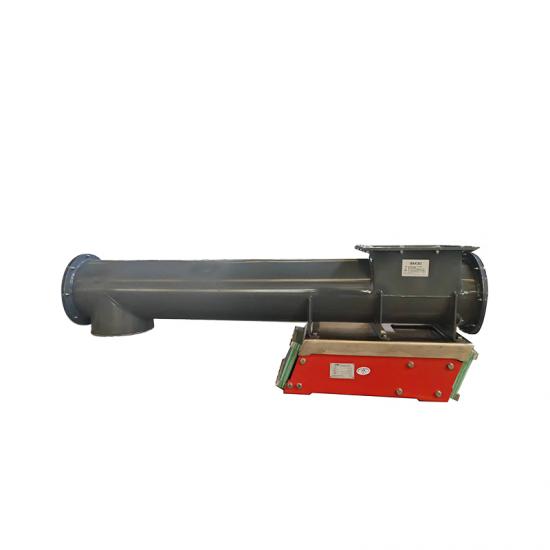

Customized electromagnetic vibrating feeders in various sizes
Electromagnetic Vibrating Feeder Functions
1. Materials Conveying: Extract bulk, granular, and powdery materials from storage equipment such as bins and hoppers, and deliver them smoothly to downstream processing equipment including crushers and screeners.
2. Uniform Feeding: Precisely control material flow rate by adjusting vibration frequency and amplitude, preventing interruptions or efficiency losses in downstream equipment caused by overfeeding or underfeeding.
3. Preliminary Screening: Use vibration to separate fine impurities or unqualified particles from the material, providing preliminary purification for subsequent processing.
4. Directional Feeding: By adjusting the equipment’s inclination angle and vibration direction, materials can be distributed evenly across receiving equipment along a defined trajectory, ensuring consistent processing quality.
FAQ
Q1. Can it match the characteristics of its own materials? For example, are the particle size, humidity, and corrosiveness of the materials compatible with the equipment? A: The electromagnetic vibrating feeder has strong design flexibility and can be compatible with materials of different characteristics.
Q2. Can the conveying speed be accurately controlled? A: The electromagnetic vibrating feeder can precisely adjust the conveying speed through the controller.
Q3. Can the voltage and frequency be customized? A: Yes.
Q4. Does the feeding volume meet the requirements of the production line? Can continuous and uniform feeding be achieved? A: The electromagnetic vibrating feeder can achieve continuous, uniform, and intermittent feeding.
Q5. What is the operational stability of the equipment? What are the failure rate and service life? A: Due to its simple structure, the electromagnetic vibrating feeder runs stably with a low failure rate and has a service life of 3 to 5 years.
Q6. How to install and operate the equipment? A: The electromagnetic vibrating feeder only needs to be fixed on-site with brackets and suspensions and can be used after installation.
Q7. How long is the warranty period? A: One year.
Q8. What’s your price terms and payment terms? A: EUR and USD; EXM/FOB/CIF
Q9. How to guarantee the quality? A: VRV marks every equipment with unique serial number, by which design parameters can be easily traced and after-service can be ensured in years. VRV takes responsible for every equipment perpetually. Any issues occurred during the life cycle of VRV vibratory equipment will be analyzed by our engineers thus to find out the optimal solution. Our company is also willing to assist customer’s field experts and maintenance engineers and provide our test data and advices to help them solve problems.
More question, feel free to contact us!
Electromagnetic Vibrating Feeder Applications
Glass industry: In the production process of glass, the transportation of raw materials such as quartz sand, sodium carbonate, limestone, etc. cannot be separated from slotted vibrating feeders. The vibrating feeder is responsible for transporting the raw materials from the storage bin to the furnace. At the same time, the recycling of waste glass will also use vibrating feeders.

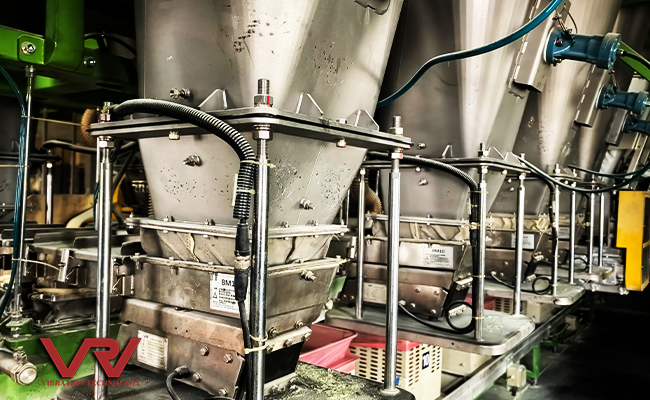

Food industry: Tube type electromagnetic vibration feeders are often used in the food industry due to their precise feeding advantages, for conveying flour, sugar, spices, nuts, grains, etc.
Chemical industry: The chemical industry often has higher precision requirements for material conveying. Small electromagnetic vibration feeders are popular in this industry due to their smaller size and higher accuracy. In laboratory experiments and the production process of rubber and plastic products, small electromagnetic vibration feeders play a huge role.
In addition, electromagnetic vibration feeders can also be applied to industries such as coal, building materials, pharmaceuticals, mining, etc., for conveying and feeding block, granular, and powdery materials.
WHAT VRV HAVE
VRV is a professional Electromagnetic vibrating feeder manufacturer from China, and we can customize all kinds of electromagnetic vibrating feeder as required.
1, Technology: VRV has mastered the core technology of vibration equipment. High-quality electromagnetic vibrators make the vibration force more stable and long-lasting. Scientific structural design improves conveying efficiency and reduces the damage caused by vibration to equipment;
2, Price: The production equipment, materials, and personnel are all from China, with more competitive prices;
3, After-sale service: One year warranty period; Permanent technical support;
4, Experience: VRV has extensive experience of vibrating equipment, applied to various industries, cooperating with hundreds of domestic and foreign enterprises.
