What is the electromagnetic vibrating feeder?

The Electromagnetic vibrating feeder can use electromagnetic force to drive and realize the vibratory feeding of materials. When the coil of the electromagnetic vibrator is connected to an alternating current power supply, the current passes through the electromagnet to generate an alternating magnetic field. Under the action of the alternating magnetic field, the armature is attracted and released, thereby generating high-frequency vibration. The vibration of the armature is transmitted to the material trough through the connected spring group, causing the material trough to also generate corresponding vibration. Due to the vibration of the material trough, the material is subjected to inertial force in the material trough. When the material trough vibrates forward, the material is accelerated and moves forward; when the material trough vibrates backward, the material continues to move forward a short distance by inertia. In this way, the material is continuously discharged from the outlet of the material trough at a certain speed to achieve the purpose of feeding.

The vibrating force of the electromagnetic feeder is gentle and adjustable, and will not cause damage to the materials，so the feeding speed can be freely adjusted. The magnetic vibrating feeder has a wide range of processing materials, which is from micron-sized powder to lumps. According to the needs of customers, VRV can customize electromagnetic vibrating feeders and provides the best material handling solution.

The working principle of electromagnetic vibratory feeder

The electromagnetic vibrating feeder is mainly composed of parts such as an electromagnetic vibrator, a feeding trough body, and a damping device. The core is the electromagnetic vibrator, which generates vibration by using the principle of electromagnetic induction. When alternating current passes through the electromagnetic coil, an alternating magnetic field is generated. Under the action of the magnetic field, the vibrating body (usually the feeding trough) connected to the armature will be subjected to periodic electromagnetic suction, causing the feeding trough body to vibrate.

The advantages of the electromagnetic vibratory feeder

1. Good feeding uniformity

2. Wide speed adjustment range

3. Simple and compact structure, convenient for maintenance and overhaul

4. High operation stability

5. Wide range of applicable materials

6. Energy saving and environmental protection

The customizable model of the electromagnetic vibrating feeder

VRV can make the suitable vibrating feeder according to your requirement, and you need provide the information below:

1, Capacity

2, The information of conveyed materials like the size and bulk density

3, The shape of the tray like tube and trough

4, The material of the device like carbon steel and stainless steel

5, The selection of drive like electromagnetic vibrator and unbalanced motor

6, others: Lining plate, customized voltage and frequency, weighing system, and so on.

These are main information that you need notice when choosing a electromagnetic vibrating feeder. These also determine the price of electromagnetic vibrating feeder. VRV can provide you the high-quality products with the most competitive price.

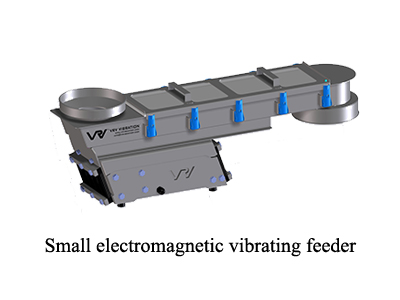

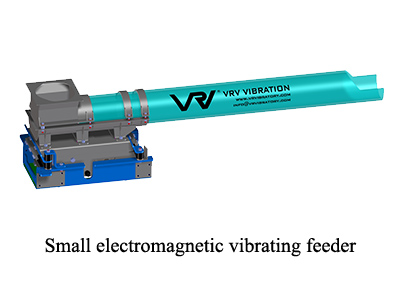

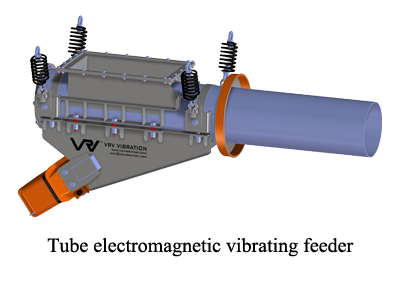

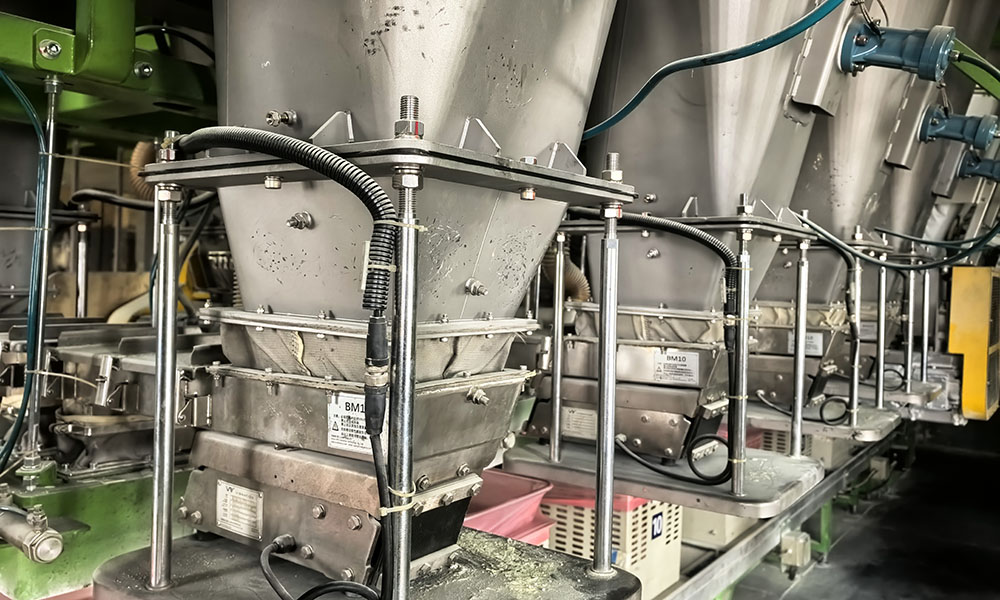

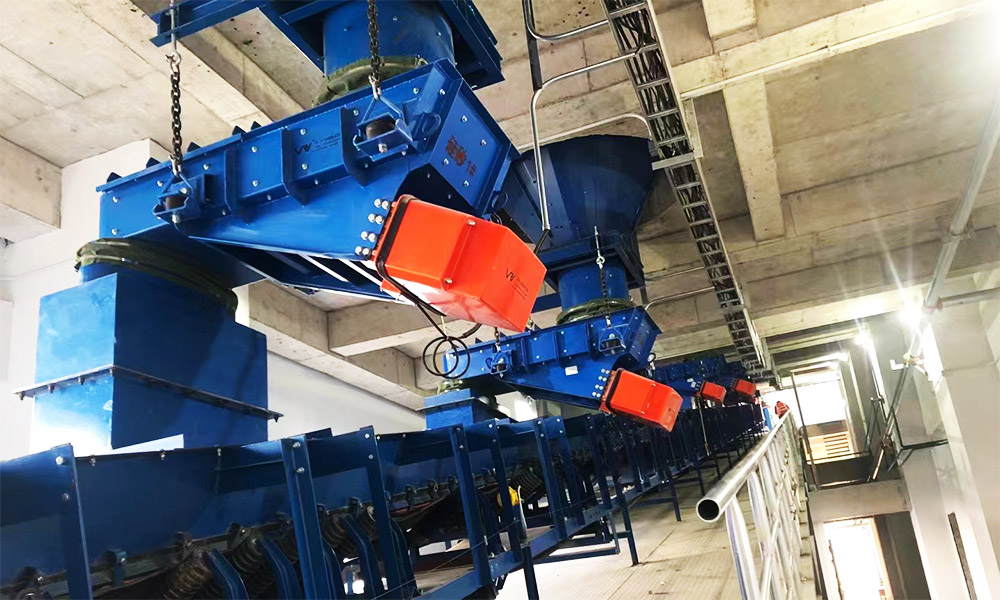

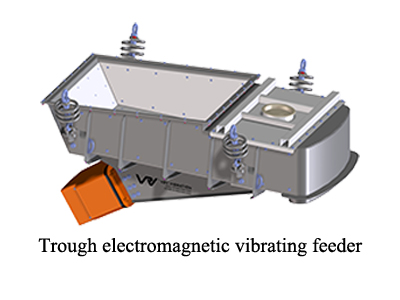

The pictures of the electromagnetic vibrating feeder
