Compact Electromagnetic Vibrating Feeder

Compact Electromagnetic Vibrating Feeder Overview

Compact Electromagnetic Vibratory Feeder is a precise, space-efficient dosing & feeding solution powered by electromagnetic excitation and reinforced carbon fiber leaf springs. Compared to conventional feeders, this unit achieves ultra-fast start-and-stop action and infinitely adjustable feed output. Both trough-type and tubular structural versions are optional to match diverse conveying requirements for free-flowing powders, fine granules and small bulk solids. Constructed with optional mirror-polished stainless steel material, the compact electromagnetic vibratory feeder meets hygiene standards for food and chemical applications. Its slim footprint allows seamless integration into confined automated production lines, packaging machinery and weighing batching systems. Characterized by quiet running performance and few wear parts, it delivers stable, homogeneous material feeding while greatly cutting daily maintenance workload.

Compact Electromagnetic Vibrating Feeder Working Principle

The compact electromagnetic vibrating feeder operates on the principle of electromagnetic resonance vibration. Driven by a precision electromagnetic vibrator, the equipment generates high-frequency intermittent magnetic force that continuously attracts and releases the feeding trough or tube. Equipped with high-strength carbon fiber leaf springs, the resonance system forms a stable vibration cycle with low energy consumption and zero mechanical wear. During operation, the uniform micro-amplitude vibration throws materials forward in a parabolic state, realizing continuous, smooth and quantitative conveying of powders and granules. The feeding speed can be steplessly adjusted by changing the vibration frequency and amplitude through the controller. With no rotating parts, no motors and no mechanical transmission structures, the feeder achieves instant start and stop, highly accurate dosing and stable long-term operation for automated production lines.

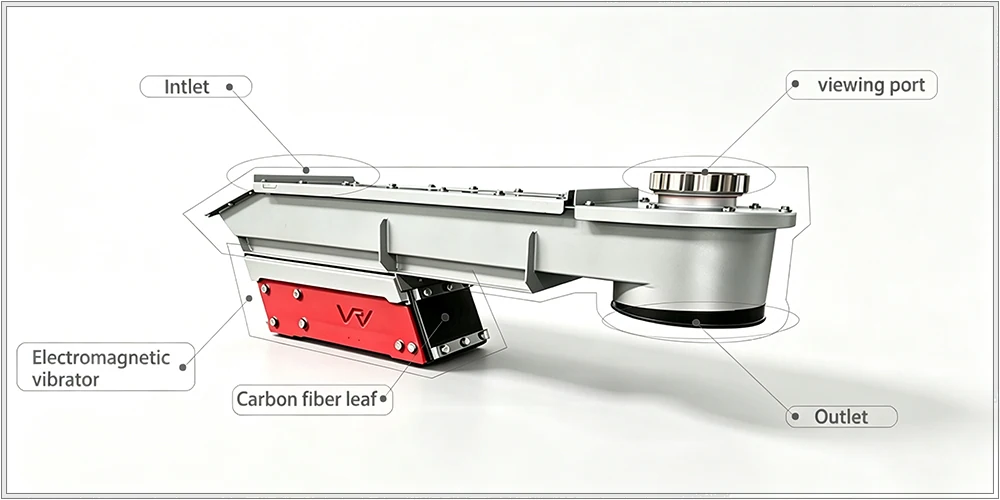

Compact Electromagnetic Vibrating Feeder Component

• Electromagnetic vibrator: VRV BM electromagnetic vibrator is the core vibration source of the compact feeding system. It adopts electromagnetic resonance drive structure with high-performance carbon fiber leaf springs

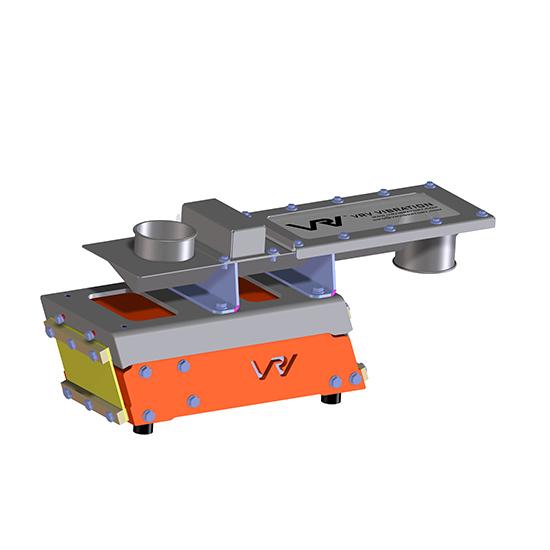

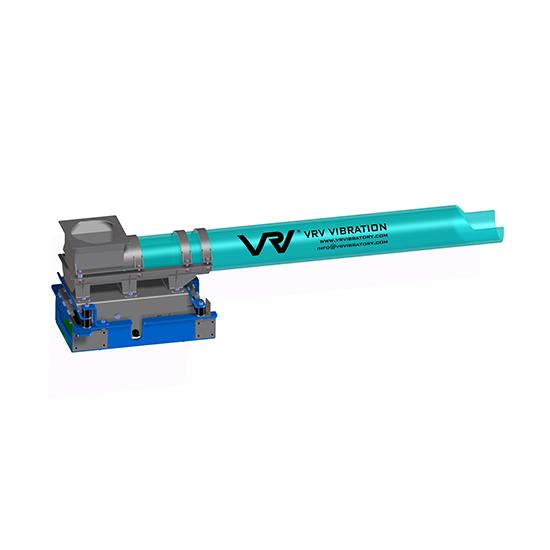

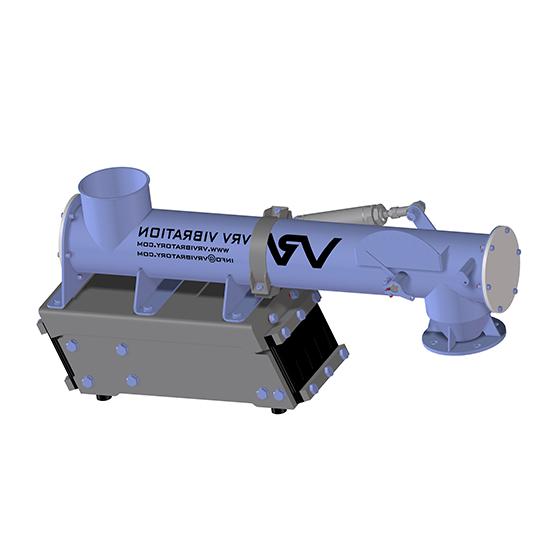

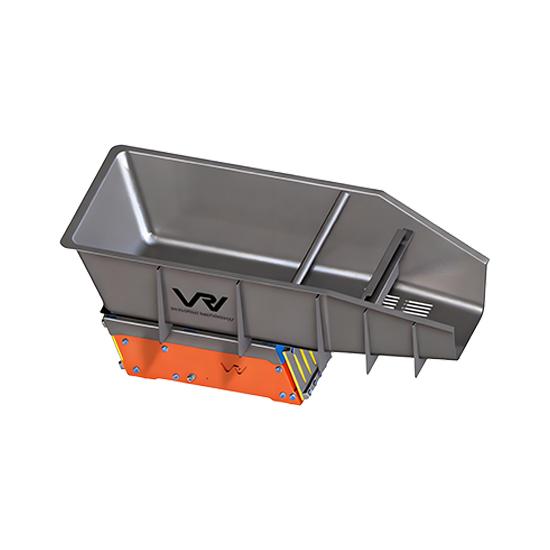

• Trough & Tube: The feeding trough or tubular body is the material conveying part of the electromagnetic feeder,  It is made of high-quality stainless steel, carbon steel or non-metallic materials with exquisite surface treatment. Both trough type and tube type structures are available to adapt to different materials such as powder, granules and small bulk solids.

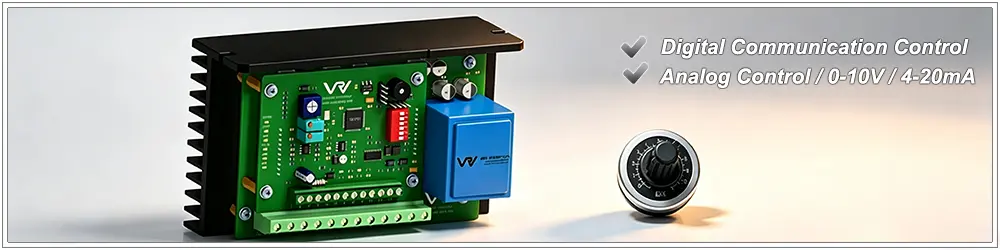

• Controller: VRV industrial-grade vibration controller is the intelligent adjustment unit that regulates the feeder’s working status. It precisely adjusts the vibration amplitude steplessly, allowing flexible control of material feeding speed and output.

Key Advantages of Compact Electromagnetic Vibrating Feeder

• Small size and light weight: Compared with other types of feeders, small electromagnetic vibration feeders have a compact structure, do not take up too much space, and are easy to install and use in places with limited space.

• Simple structure: The equipment does not have complex mechanical transmission components and is mainly composed of several key parts, which makes it highly reliable in operation and has low maintenance costs.
• Energy saving: Electromagnetic drive is relatively energy-efficient and can save energy consumption and reduce production costs during long-term operation.
• Uniform feeding: Through precise vibration control, materials can be continuously, evenly and uniformly transported to downstream equipment, ensuring the stability of the production process and product quality.
• Controllable feeding amount: The supply of materials can be precisely controlled by adjusting the vibration frequency and amplitude to meet the needs of different production processes.

• Strong adaptability: For different types of materials, such as powders, particles, blocks, etc., as long as the physical properties of the materials allow, they can be transported.

 Selection Guidelines & Key Technical Parameters

• Feeding capacity: Determine the required feeding capacity based on production needs and select the appropriate model of feeder. The general production capacity is calculated based on the bulk density of the material. If conveying powdered materials, its conveying capacity may decrease.

• Conveying distance: The central distance from inlet to outlet.

• Information of bulk materials: Name, particle size, bulk density and so on.

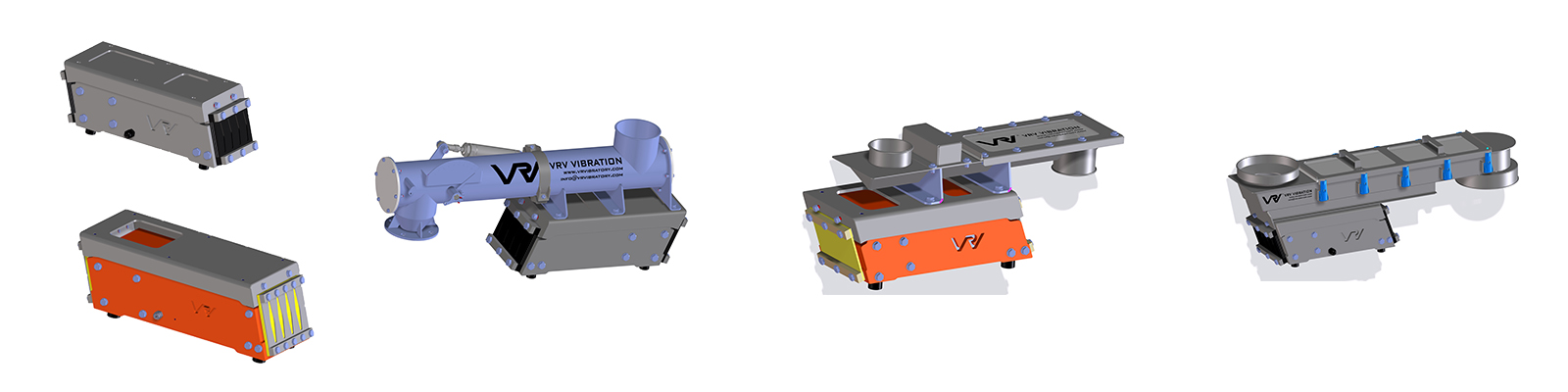

• Shape: Trough or tube type, open or enclosed?

• Material contruction: Stainless steel, mild steel or other non-metallic material

• Surface treatment: Paint coated, sandbalsting, polishing or mirror finishing?

• Installation method: Depending on the actual site and process requirements, suspended or seated installation methods can be selected to ensure that the equipment is installed firmly and runs stably.
• Control mode: According to the requirements of production automation level, choose a matching ordinary control box to achieve manual stepless adjustment, or a matching automatic control box to achieve manual and automatic adjustment.

More special question, please feel free to contact VRV.

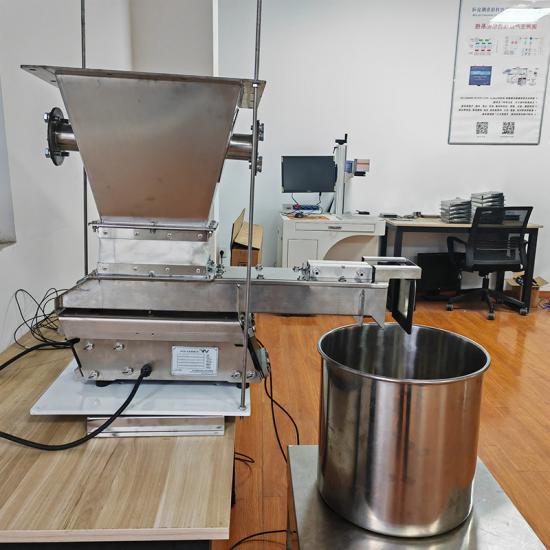

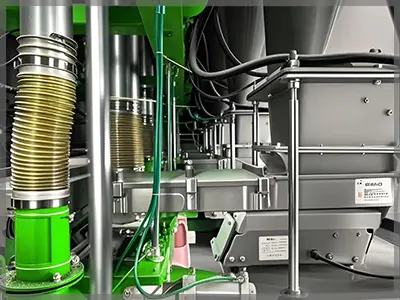

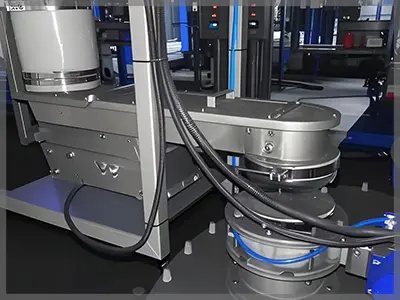

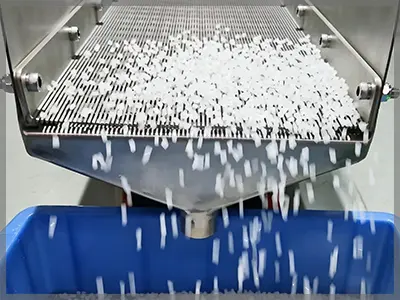

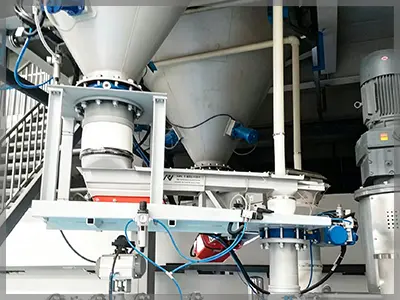

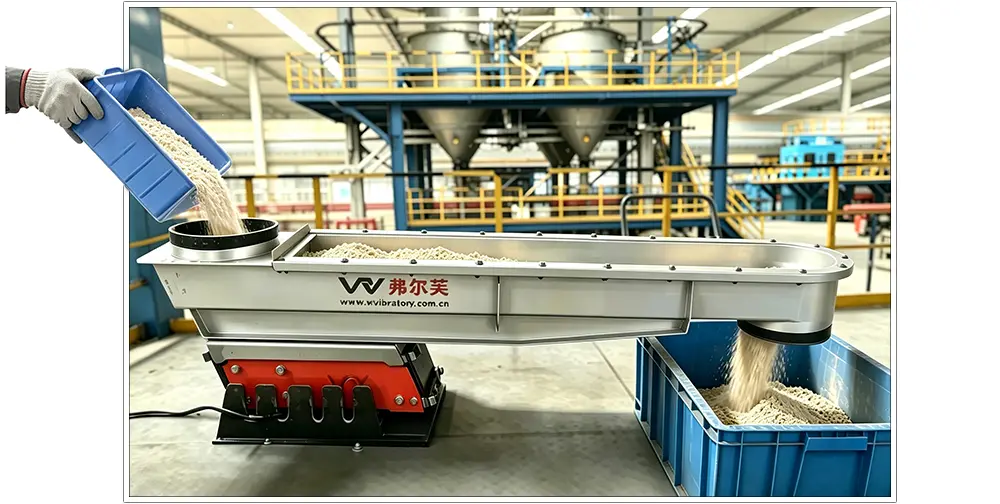

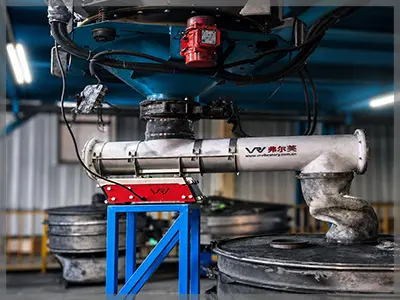

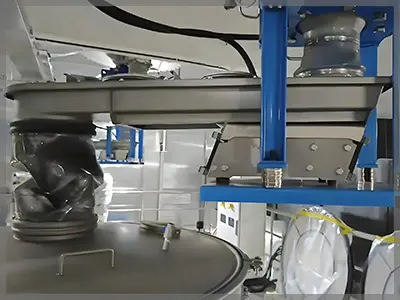

Compact Electromagnetic Vibrating Feeder Application & Working Site

FAQ

Q1: What materials can your compact electromagnetic vibrating feeder handle? A1: Our compact vibratory feeders suit fine powder, granular, small block bulk materials, including food powder, chemical raw materials, plastic particles, mineral powder, etc. It’s not suitable for wet sticky materials that easily agglomerate.

Q2: Why is it called "compact"? What’s its space-saving advantage? A2: It adopts resonance electromagnetic drive structure, no bulky vibration motor. Overall height & length are 30% smaller than traditional motor vibrating feeders, perfectly matching small silos, lab production lines and confined installation space.
Q3: Can I switch between manual potentiometer control and automatic PLC communication control? A3: Yes. Our matching controller reserves both analog and digital signal interfaces, you can switch operation mode on site according to production needs.

Q4: Is stainless steel contact surface standard? Can it be customized? A4: Standard material is 304 stainless steel for material trough. 316L stainless steel is optional for corrosive chemical, food & pharmaceutical industries. Carbon steel outer frame is standard.

Q5: How long is the service life of the electromagnetic vibrator core?

Certificate and Qulification of Vibrating Feeder Manufacturer

As a leading Chinese original manufacturer of compact electromagnetic vibrating feeders with full in-house R&D and production capacity, VRV supply reliable feeding solutions to clients worldwide. Our factory operates under a strict ISO quality management system, and all our feeders and matching control systems hold complete international certifications including CE, ATEX, CNEX explosion-proof approvals, plus FDA and LFGB food-grade certification, supporting both standard models and customized designs for diverse global automated bulk material processing industries.
