Electromagnetic Vibrating Conveyor: Optimized Steel‑Slag Feeding for Better Magnetic Separation

Aug 25 , 2026

Steel slag and vibrating conveyor

Steel slag is an unavoidable by‑product generated during steel‑making. Containing large volumes of metallic iron particles, steel‑slag processing plants rely heavily on magnetic separation to reclaim reusable ferrous materials, turning industrial waste into saleable resources. Yet many processing sites run into a common bottleneck right before magnetic separators: uneven feeding. If bulk steel‑slag piles rush onto magnetic rollers in thick layers, magnetic fields cannot fully penetrate material layers. Valuable iron fragments stay mixed within non‑magnetic slag, lowering metal recovery rates and eating into plant profits. This is where a well‑configured electromagnetic vibrating conveyor brings tangible improvements to your slag‑handling workflow.

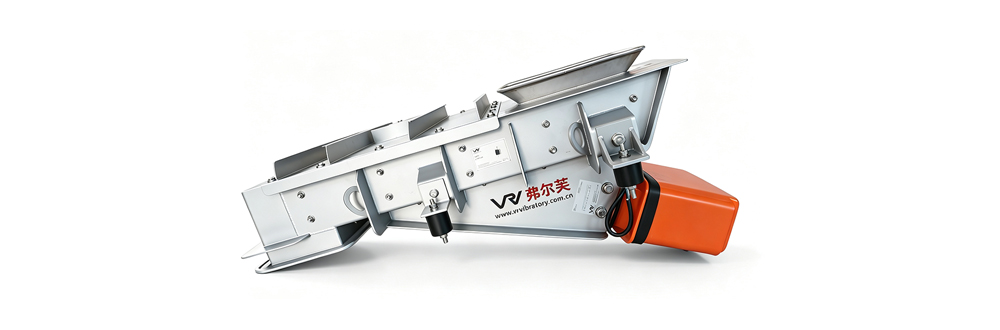

Unlike conventional motor‑driven vibrating conveyor units, the electromagnetic vibrating conveyor runs on pure electromagnetic excitation. It delivers softer, gentler vibration instead of heavy impact oscillation. This unique drive characteristic helps spread crushed steel‑slag into thin, uniform material layers across the trough surface. Thin monolayer feeding is exactly what magnetic separators require. Every steel‑slag particle gets fully exposed to the magnetic field, so ferrous fragments can be picked up completely. Many operators notice clear improvement in separation yield once they swap traditional vibrating conveyor solutions for electromagnetic‑driven models feeding magnetic separation stations.

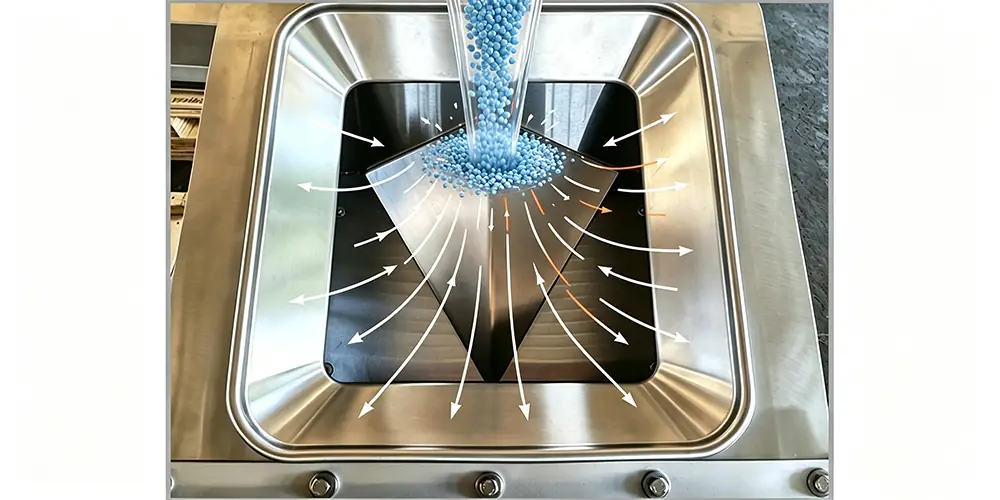

We have further optimized our electromagnetic vibrating conveyor specifically for steel‑slag applications. A specially‑designed conical material‑distributing structure sits directly under the feeding inlet. When abrasive steel‑slag falls down from upstream hoppers, this cone‑shaped component disperses incoming material sideways. It eliminates local material accumulation and prevents thick stacking at one spot on the conveying trough. Combined with soft electromagnetic vibration, steel‑slag spreads evenly along the full width of the vibrating conveyor trough before discharging towards magnetic separators. No material surges, no thick lumpy piles hitting the magnetic roller.

conical material‑distributing structure

When applied to steel‑slag processing, the electromagnetic vibrating conveyor features a simplified construction with no gear, bearing or other high‑wear transmission parts. Driven by electromagnetic vibrators, it operates without mechanical friction. Virtually maintenance‑free, it requires no regular lubrication or component replacement. It fits continuous production of steel‑slag lines and minimizes downtime caused by routine servicing.

For steel‑slag processing environments filled with sharp, highly abrasive particles, reliability counts for everything. Our electromagnetic vibrating conveyor has no rotating bearings or gearboxes found on standard motor‑type vibrating conveyor equipment. With fewer wearing parts, maintenance workload drops significantly for continuous slag‑recycling operations. Operators can adjust feeding throughput smoothly through control panels to match magnetic separator capacity, adapting to fluctuating steel‑slag feed volumes coming from crushing circuits.

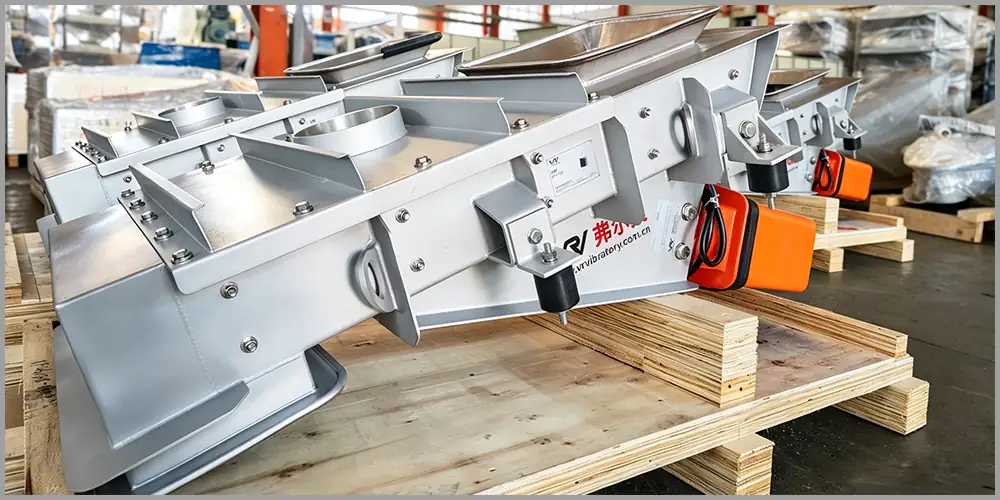

Electromagnetic vibrating conveyor for slag steel

In modern steel‑slag resource recovery lines, matching the right feeding equipment with magnetic separators directly defines overall plant profitability. A general‑purpose vibrating conveyor may move bulk slag from point A to point B, but only a purpose‑built electromagnetic vibrating conveyor delivers the thin, evenly‑spread feed condition critical for high‑efficiency magnetic separation. If you are struggling with unstable metal recovery from steel‑slag streams, evaluating your feeding solution is often the most cost‑effective upgrade for your existing processing setup.
